Oil & Gas Drilling Solids Control System
Advanced Solids Control Solutions for Efficient Oil & Gas Drilling
Integrated drilling fluid management systems engineered to optimize solids removal, maximize mud recovery, and enhance drilling performance across onshore, offshore, and workover operations.
Oil and Gas Drilling Solids Control
Challenge

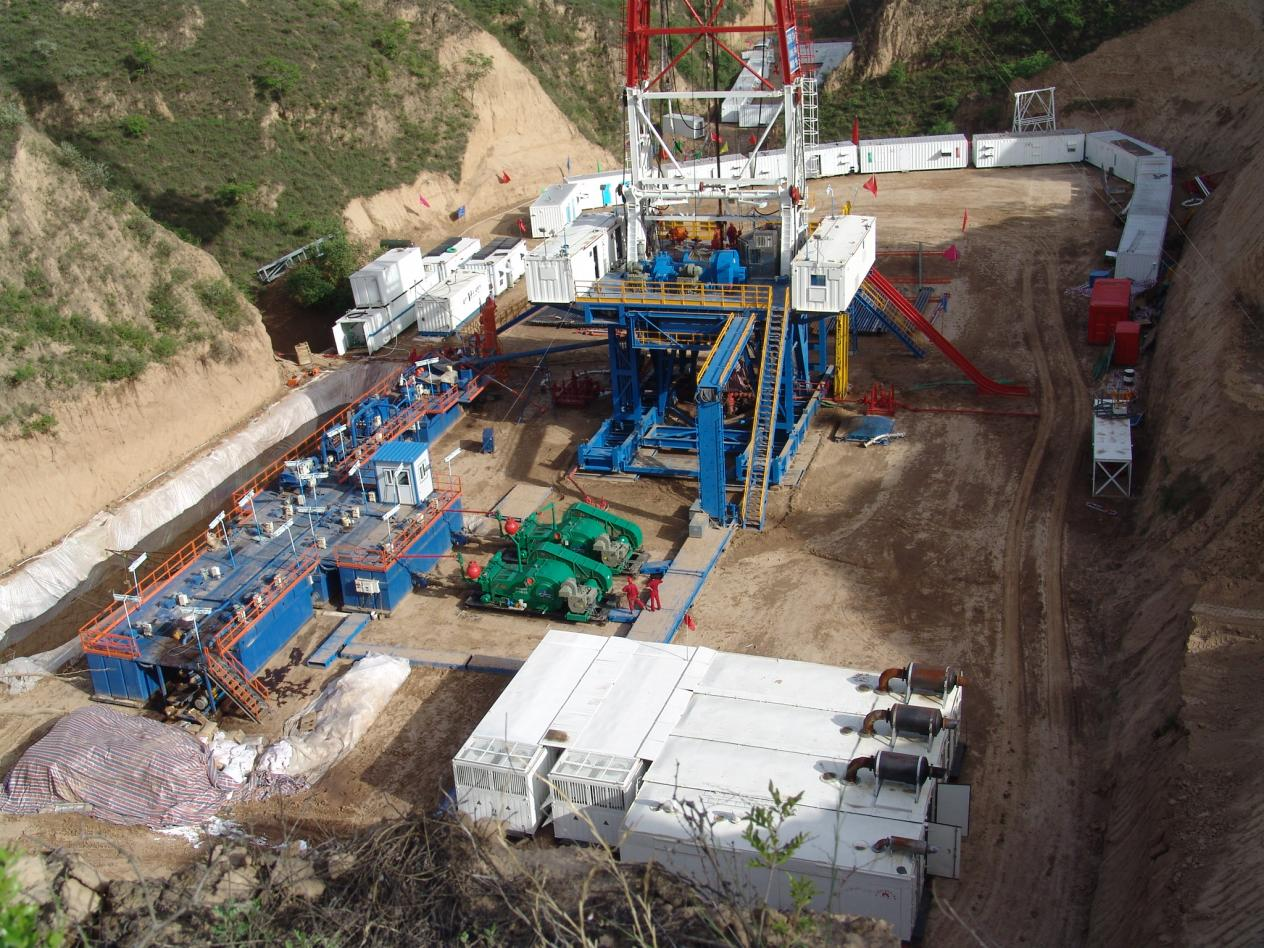

Maintaining drilling efficiency while managing complex drilling fluids and solids
During oil & gas drilling operations, inefficient solids removal, unstable drilling fluids, and poor mud management can impact drilling performance, increase operational costs, and reduce overall system reliability.
Drilling rigs require reliable solids control solutions to effectively separate unwanted solids, maintain optimal mud properties, and ensure continuous circulation throughout drilling and workover operations.
Without an integrated solids control system, excessive solids accumulation can affect drilling fluid performance, increase equipment wear, and create challenges in maintaining efficient and stable drilling operations.
Solutions

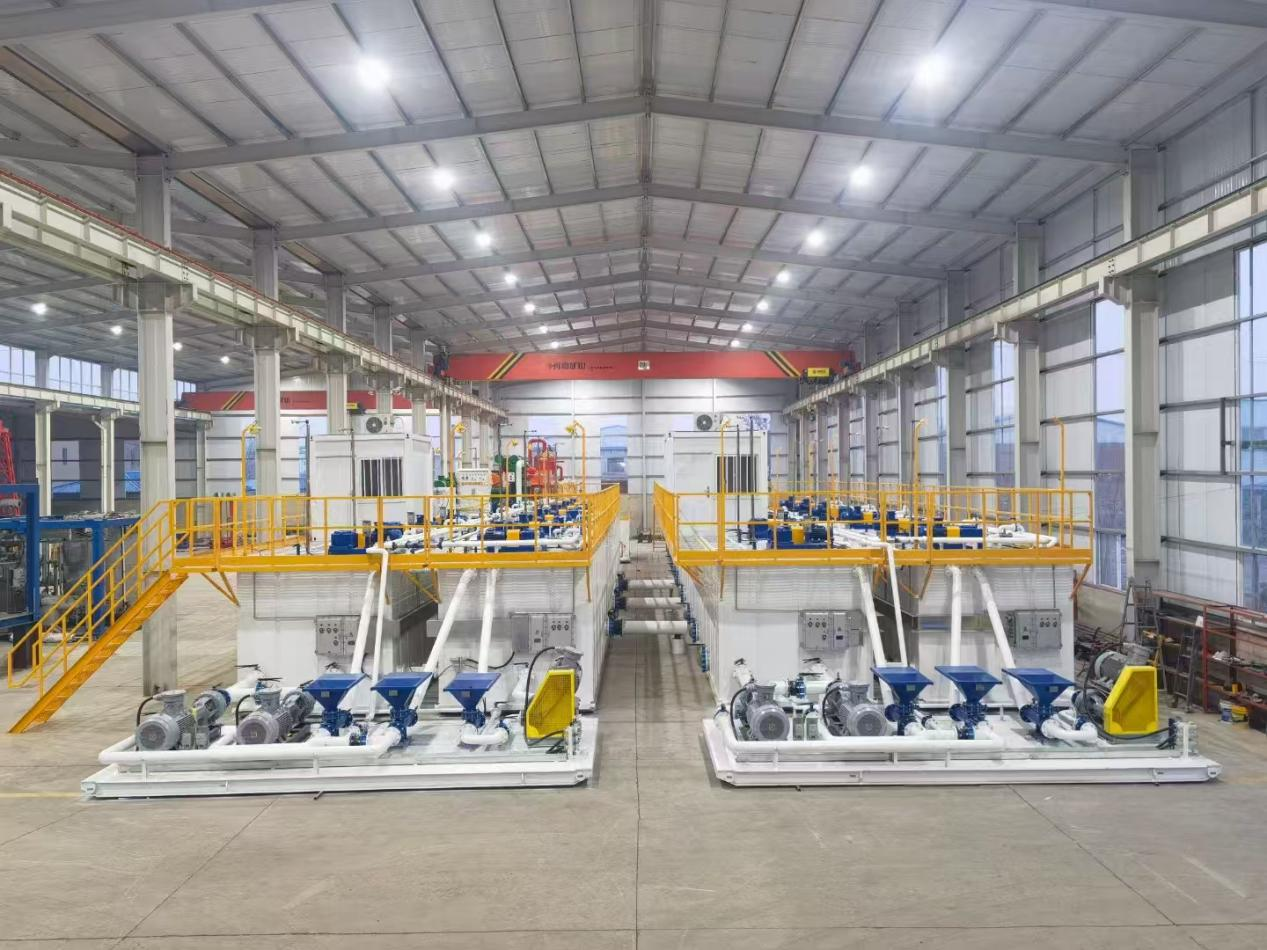

Integrated drilling fluid purification and mud recycling system
Henyo Petro provides complete integrated solids control solutions designed to optimize drilling fluid performance and improve operational efficiency across oilfield applications.
Our systems integrate a full range of solids control equipment, including mud gas separator, shale shaker, vacuum degasser, desander, desilter, mud cleaner, decanter centrifuge, pumps, mud agitator, mud gun, and mud tanks.
By combining advanced separation technologies with customized system configurations, HY Solids Control delivers reliable drilling fluid management solutions for:
Oil drilling rigs
Workover rigs
Gas drilling rigs
The complete solids control systems cover ZJ15–ZJ90 drilling mud solids control systems and XJ250–XJ750 workover vehicular mud recycling systems,providing efficient solids removal, mud recovery, and drilling fluid optimization for diverse oilfield operations.
Components
Core Equipment for Oil Gas Drilling Solids Control System
A complete drilling solids control solution relies on a coordinated range of high-performance equipment designed for drilling fluid purification, solids separation, mud recovery, and efficient circulation management. Each component works together to improve drilling performance, reduce waste, and support reliable oilfield operations.
Drilling Fluid Separation & Purification
Mud Gas Management
Mud Circulation & Conditioning
Supporting Equipment & Consumables
Advanced separation equipment designed to remove unwanted solids and gas from drilling fluids, maintaining optimal mud properties and improving drilling efficiency.
Reliable gas separation and handling solutions designed to remove free gas from drilling fluids and support safe drilling operations.
Integrated circulation and mixing equipment designed to maintain consistent drilling fluid properties and ensure efficient system operation.
-
Mud Tank System
The Heart of Efficient Drilling Fluid ManagementEXPLORE -
Mud Agitator
Key Solids Control Equipment for Drilling Fluid Tank SystemsEXPLORE -
Mud Gun
Efficient Tank Cleaning for Reliable Drilling Fluid PerformanceEXPLORE -
Shear Pump
Advanced Polymer Hydration for High-Performance Drilling FluidsEXPLORE -
Screw Pump
Reliable, Efficient & Versatile Screw Pump for Demanding ApplicationsEXPLORE -
Submersible Slurry Pump
Move Tough Slurries with Power, Reliability & EfficiencyEXPLORE
Supporting products designed to enhance system reliability, maintenance efficiency, and long-term operational performance.
Highlights

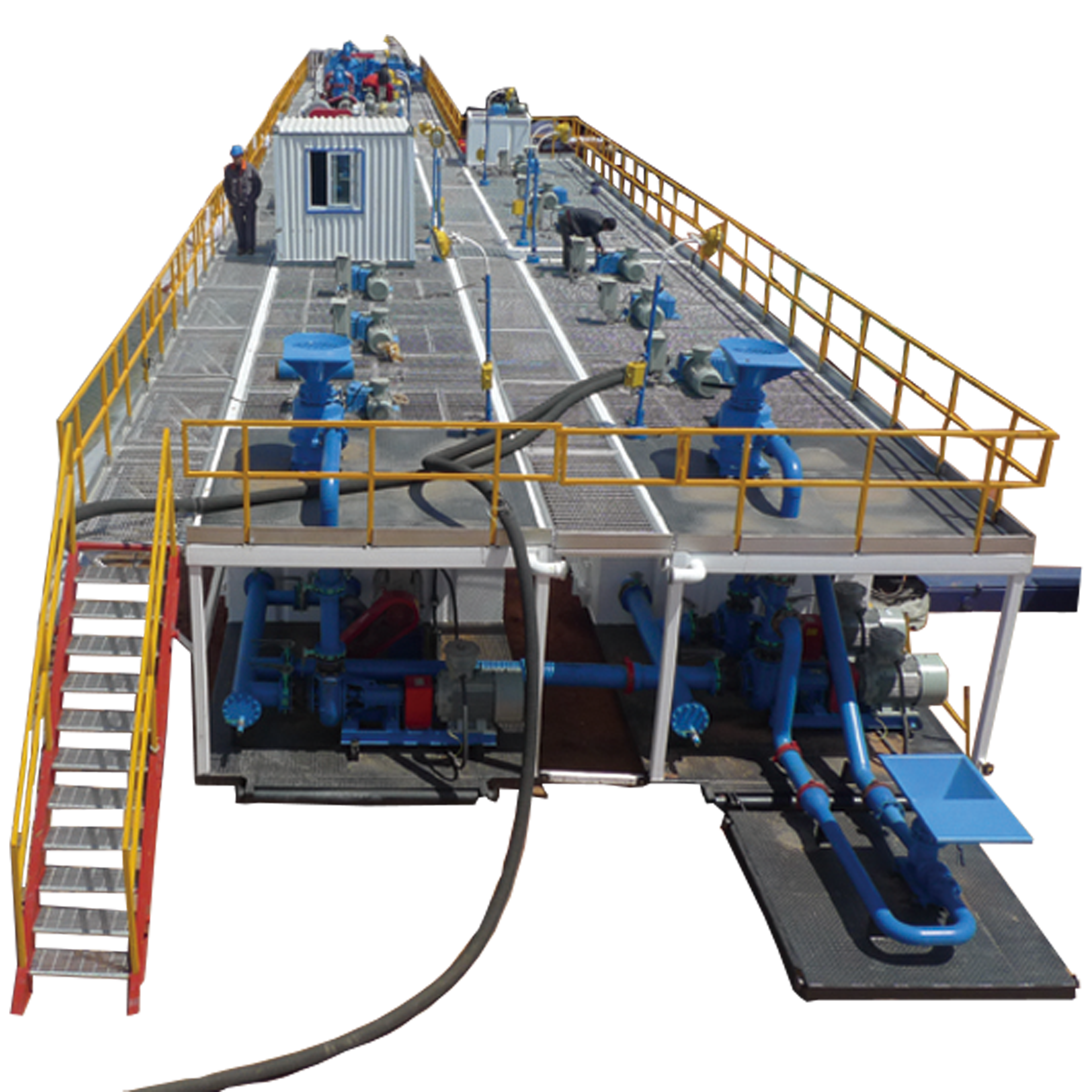

Integrated Oil and Gas Drilling Solids Control Solutions
Our solution highlights its core capabilities and the real, measurable value it delivers.
Full-series supporting equipment
Complete solids control equipment portfolio realizes one-stop drilling fluid purification treatment
Wide rig model coverage
Compatible with ZJ15 to ZJ90 drilling rigs and XJ250 to XJ750 workover rigs for diverse project demands
Customized system design
Flexible tank volume and tank quantity configuration tailored to on-site drilling conditions
Systematic mud recycling
Standardized graded purification process ensures effective solids removal and drilling fluid reuse
Mature integrated design
Reasonable structural layout, stable system operation and strong on-site adaptability
Complete Purification Performance
Multi-stage graded solids removal effectively removes large and fine impurities from drilling mud, ensuring stable drilling fluid performance
High Mud Recycling Rate
Optimized system configuration reduces drilling fluid waste and lowers overall drilling material cost
Wide Application Flexibility
Covers full-scale drilling and workover rig models, adaptable for onshore conventional drilling and workover operations
Customized Matching Solution
Flexible tank capacity and quantity design fits different well depth and construction requirements
Stable & Reliable Operation
Integrated matched equipment ensures coordinated system operation, reducing on-site failure rate and downtime
TECHNICAL SPECIFICATIONS
| Rig class | Capacity(m³) | Tank Qty(pcs) |
|---|---|---|
| ZJ15 Drill rig solids control system | ≥60m³ | 2-3 |
| ZJ20 Drill rig solids control system | ≥160m³ | 2-3 |
| ZJ30 Drill rig solids control system | ≥160m³ | 3-4 |
| ZJ40 Drill rig solids control system | ≥200m³ | 4-5 |
| ZJ50 Drill rig solids control system | ≥280m³ | 5-6 |
| ZJ70 Drill rig solids control system | ≥380m³ | 6-8 |
| ZJ90 Drill rig solids control system | ≥500m³ | 8-20 |
| Remark: Provide ideal equipment layout for fine-separation systems based on customer’s performance requirements and spatial constraints. | ||
Why Choose Our Solids Control System?
- Full-chain manufacturer with complete solids control equipment lineup for one-stop procurement
- Standardized system design matching international mainstream drilling rig models
- Customized engineering solution based on actual site conditions and drilling parameters
- Reasonable system layout, convenient on-site installation, operation and maintenance
- Mature field application experience for various oilfield drilling and workover projects
- Optimize your drilling fluid management with professional Henyo Petro Solids Control System. Improve mud purification efficiency, reduce operating costs, and realize sustainable drilling fluid recycling for oil & gas drilling operations
Case Studies
Proven in the Field

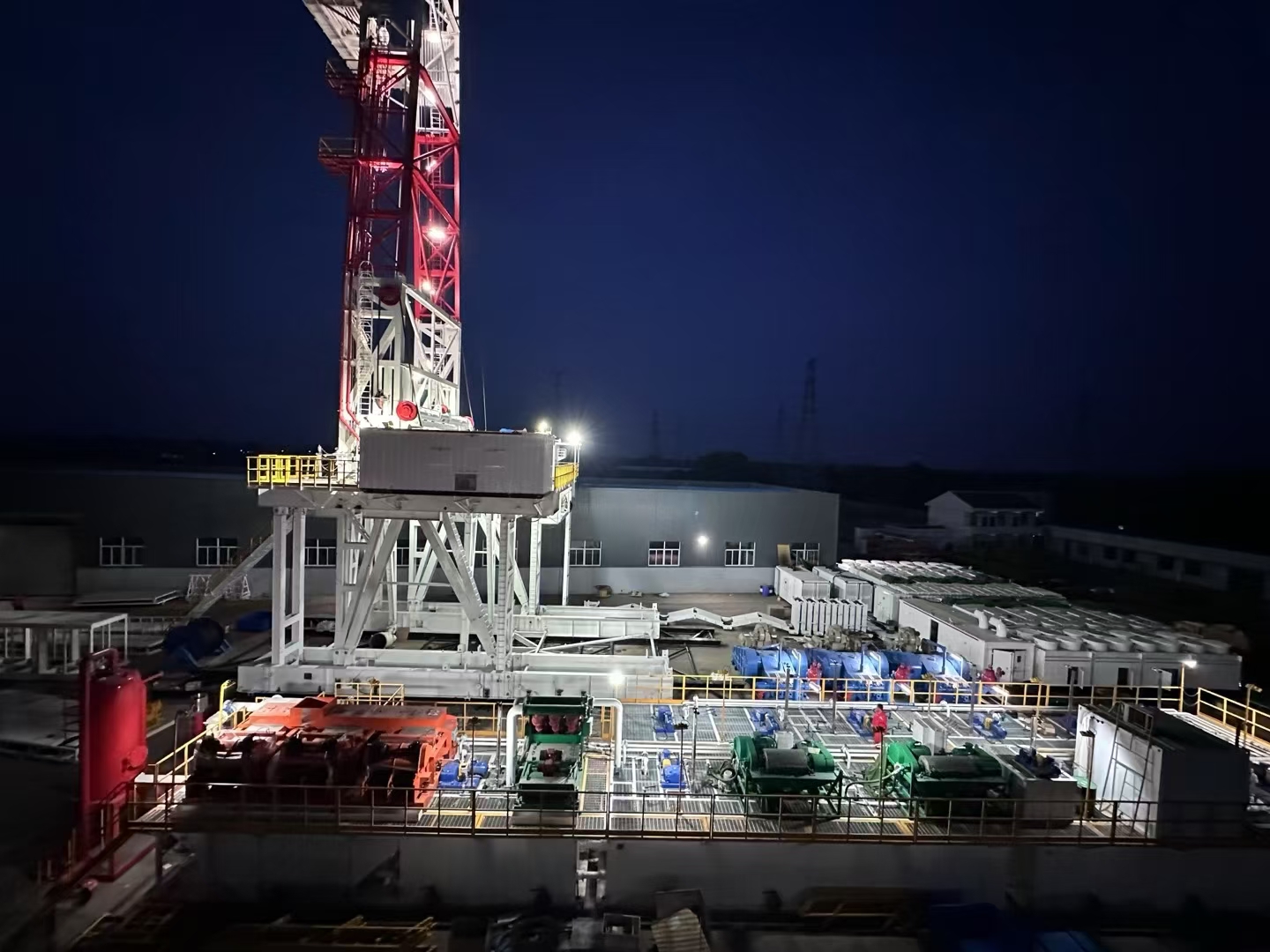

ZJ70 Drilling Rig Solids Control System Project (Ethiopia)
Challenge
Large-scale onshore drilling campaigns with ZJ70 rigs across Africa generate massive drill cuttings and waste drilling fluid. Operators faced soaring waste haulage & landfilling expenses, insufficient site storage space, plus stringent local environmental protection laws restricting uncontrolled mud discharge and soil contamination.
Solution
Customized full-set ZJ70 rig dedicated solids control system, including linear motion shale shakers, desanders, desilters, high-speed decanter centrifuges and complete closed-loop mud circulation module. The system separates drill solids step-by-step, recycles usable drilling fluid onsite, drastically cuts waste output at source and eliminates unauthorized mud leakage.
Large-scale onshore drilling campaigns with ZJ70 rigs across Africa generate massive drill cuttings and waste drilling fluid. Operators faced soaring waste haulage & landfilling expenses, insufficient site storage space, plus stringent local environmental protection laws restricting uncontrolled mud discharge and soil contamination.
Solution
Customized full-set ZJ70 rig dedicated solids control system, including linear motion shale shakers, desanders, desilters, high-speed decanter centrifuges and complete closed-loop mud circulation module. The system separates drill solids step-by-step, recycles usable drilling fluid onsite, drastically cuts waste output at source and eliminates unauthorized mud leakage.
Field Feedback
“
Reliability is critical for our desert drilling operations. Henyo’s equipment has been running continuously under harsh field conditions for more than a year, and the performance has been very stable. We have experienced very few maintenance issues with the mud cleaner, and the overall build quality has met our expectations. When we needed spare parts for the pump, the service team responded quickly and helped us minimize downtime. Based on our experience, Henyo has become a trusted partner for our future drilling projects.
Mohammed Al-Hassan
Drilling Operations Manager
“
We have evaluated several brands of solids control equipment over the past two years, and Henyo’s shale shaker and decanter centrifuge have delivered the most consistent performance. The equipment handles high-volume drilling operations smoothly and performs beyond our initial expectations. What impressed us most is the efficient fluid recovery, which helped us reduce drilling fluid consumption during this project. The cuttings discharge is also noticeably drier, making waste handling easier and helping us meet environmental requirements without issues.
John Miller
Procurement Manager
“
Before switching to Henyo’s integrated solids control system, we were using equipment from different suppliers, which created many compatibility issues. The shaker, cascade system, and centrifuge now work together smoothly as one complete solution. The centralized control system makes daily monitoring much easier for our team, and the centrifuge has maintained good performance after multiple wells. Henyo’s integrated approach has helped us improve operational efficiency and better control drilling fluid costs.”
Robert Williams
Project Manager
Oil Gas Drilling Solids Control System FAQs
What is included in a complete oilfield solids control system?
A complete oilfield drilling solids control system includes mud gas separator, shale shaker, vacuum degasser, desander, desilter, mud cleaner, decanter centrifuge, mud tanks, mud pumps, mud agitators, and mud guns.
These key equipment units form a multi-stage drilling fluid purification and solids removal system, designed to efficiently separate drilling cuttings, sand, and fine solids from drilling mud, ensuring stable mud performance and effective mud recycling in oil and gas drilling operations.
These key equipment units form a multi-stage drilling fluid purification and solids removal system, designed to efficiently separate drilling cuttings, sand, and fine solids from drilling mud, ensuring stable mud performance and effective mud recycling in oil and gas drilling operations.
Which drilling rigs is the solids control system compatible with?
The drilling solids control system is compatible with a wide range of oilfield drilling and workover rigs, including ZJ15–ZJ90 drilling rigs and XJ250–XJ750 workover rigs.
It is widely used in onshore oil drilling, gas drilling, and workover operations, and can also be customized based on rig layout, drilling depth, drilling capacity, and specific oilfield engineering requirements.
It is widely used in onshore oil drilling, gas drilling, and workover operations, and can also be customized based on rig layout, drilling depth, drilling capacity, and specific oilfield engineering requirements.
Can the drilling mud solids control system be customized?
Yes, the oil & gas solids control system supports full customization to match different drilling conditions and project requirements.
Tank volume, tank quantity, equipment configuration, and processing capacity can all be designed according to well depth, drilling fluid properties, site layout, and oilfield operational conditions, ensuring optimal solids separation efficiency and drilling fluid performance.
Tank volume, tank quantity, equipment configuration, and processing capacity can all be designed according to well depth, drilling fluid properties, site layout, and oilfield operational conditions, ensuring optimal solids separation efficiency and drilling fluid performance.
How does a solids control system improve drilling efficiency?
The drilling fluid solids control system uses a multi-stage separation process to remove large solids and fine particles from drilling mud, including drilled cuttings and abrasive materials.
This helps maintain stable drilling fluid properties, improves drilling performance, reduces drill bit wear, and significantly decreases non-productive time (NPT), resulting in higher efficiency in oil and gas drilling operations.
This helps maintain stable drilling fluid properties, improves drilling performance, reduces drill bit wear, and significantly decreases non-productive time (NPT), resulting in higher efficiency in oil and gas drilling operations.
What are the cost advantages of using a drilling mud recycling system?
A drilling mud recycling and solids control system significantly reduces drilling fluid consumption by enabling efficient mud reuse.
It lowers drilling fluid procurement costs, reduces waste disposal expenses, and improves overall cost efficiency in oilfield drilling and workover operations, making it a cost-effective solution for long-term drilling projects.
It lowers drilling fluid procurement costs, reduces waste disposal expenses, and improves overall cost efficiency in oilfield drilling and workover operations, making it a cost-effective solution for long-term drilling projects.
Is the solids control system suitable for both drilling rigs and workover rigs?
Yes, the system is suitable for both oil drilling rigs and mobile workover rigs.
It is widely applied in onshore oilfields and gas drilling projects, providing stable performance, high adaptability, and efficient solids removal under different drilling environments and operational conditions.
It is widely applied in onshore oilfields and gas drilling projects, providing stable performance, high adaptability, and efficient solids removal under different drilling environments and operational conditions.
Let’s build a sustainable oilfield future together!
Whether developing a new drilling project or enhancing an existing solids control system, Henyo Petro delivers proven equipment, engineering expertise, and integrated solutions that help improve drilling efficiency, maximize fluid recovery, and reduce waste.
