HDD Mud Recycling

Challenge

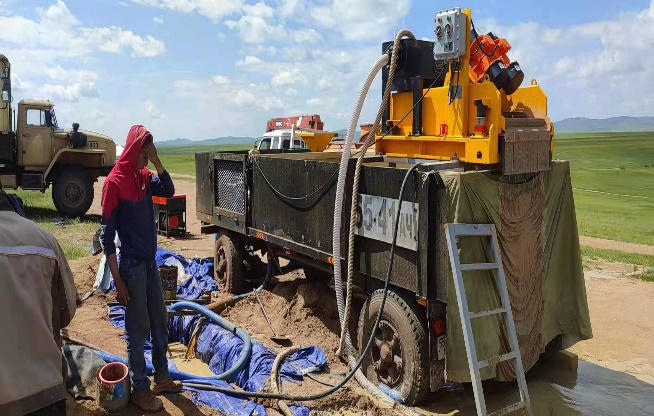

High Mud Consumption, Rising Costs, and Environmental Challenges
Horizontal Directional Drilling (HDD) projects consume large volumes of drilling fluid (mud). Disposing of spent mud and constantly mixing fresh fluid drives up costs, increases water usage, and creates environmental and regulatory challenges.

Solutions

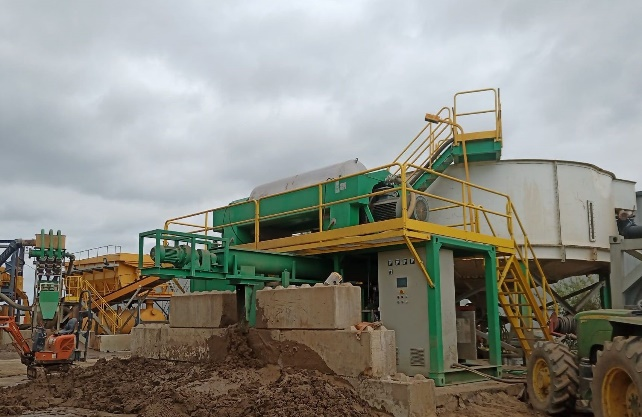

Efficient Mud Recycling for Cost Reduction and Sustainable HDD Operations
Our HDD Mud Recycling System (also known as a Mud Reclaimer or Solids Control System) delivers high-efficiency cleaning and reuse of drilling fluids, helping contractors significantly cut costs while boosting productivity and sustainability.
Components
Core Equipment for Mud Recycling System
A full set of HDD mud reclamation unit relies on coordinated high-performance separation & circulation equipment to complete mud purification, solid-liquid separation and mud cyclic reuse. Every module works in sequence to reduce mud waste, lower construction cost and guarantee stable HDD operation.
Multi-stage separation units to remove large, medium and fine drill solids from returned mud.
Support stable mud delivery, mixing and storage to maintain consistent mud properties
-

Mud Tank System
The Heart of Efficient Drilling Fluid ManagementEXPLORE -

Centrifugal Pump
Reliable Fluid Transfer for Efficient Solids Control SystemsEXPLORE -

Jet Mud Mixer
Efficient Mud Mixing for Superior Drilling Fluid PerformanceEXPLORE -

Mud Agitator
Key Solids Control Equipment for Drilling Fluid Tank SystemsEXPLORE
Highlights
Integrated HDD Mud Recycling Solutions
Our solution highlights its core capabilities and the real, measurable value it delivers.
Multi-Stage Solids Control
Coarse shale shakers for large cuttings + hydrocyclone desanders and desilters for finer particles (down to 20-25 microns).
High-Performance Centrifuges (optional)
For ultra-fine solids removal and superior fluid clarity.
Integrated Mixing & Storage Tanks
Partitioned tanks with agitators and mud guns for consistent fluid properties.
Centrifugal Pumps & Hoppers
Reliable circulation and chemical/additive mixing.
Compact & Modular Skid/Trailer Design
Easy transport between job sites, ideal for urban and space-constrained projects.
Automation & Monitoring
Real-time flow and pressure monitoring for optimized performance.
Major Cost Savings
Reduce fresh water usage, bentonite, polymers, and additives by 50-70%+. Drastically lower disposal and trucking costs.
Increased Productivity:
Maintain optimal mud properties for better hole stability, higher penetration rates, and fewer drilling interruptions.
Environmental Compliance
Minimize waste volume, reduce environmental footprint, and meet strict regulations on fluid disposal and water conservation.
Extended Equipment Life
Cleaner fluid reduces wear on mud pumps, drill bits, and downhole tools.
Faster Project Completion
Less time spent mixing new mud and handling waste means more time drilling.

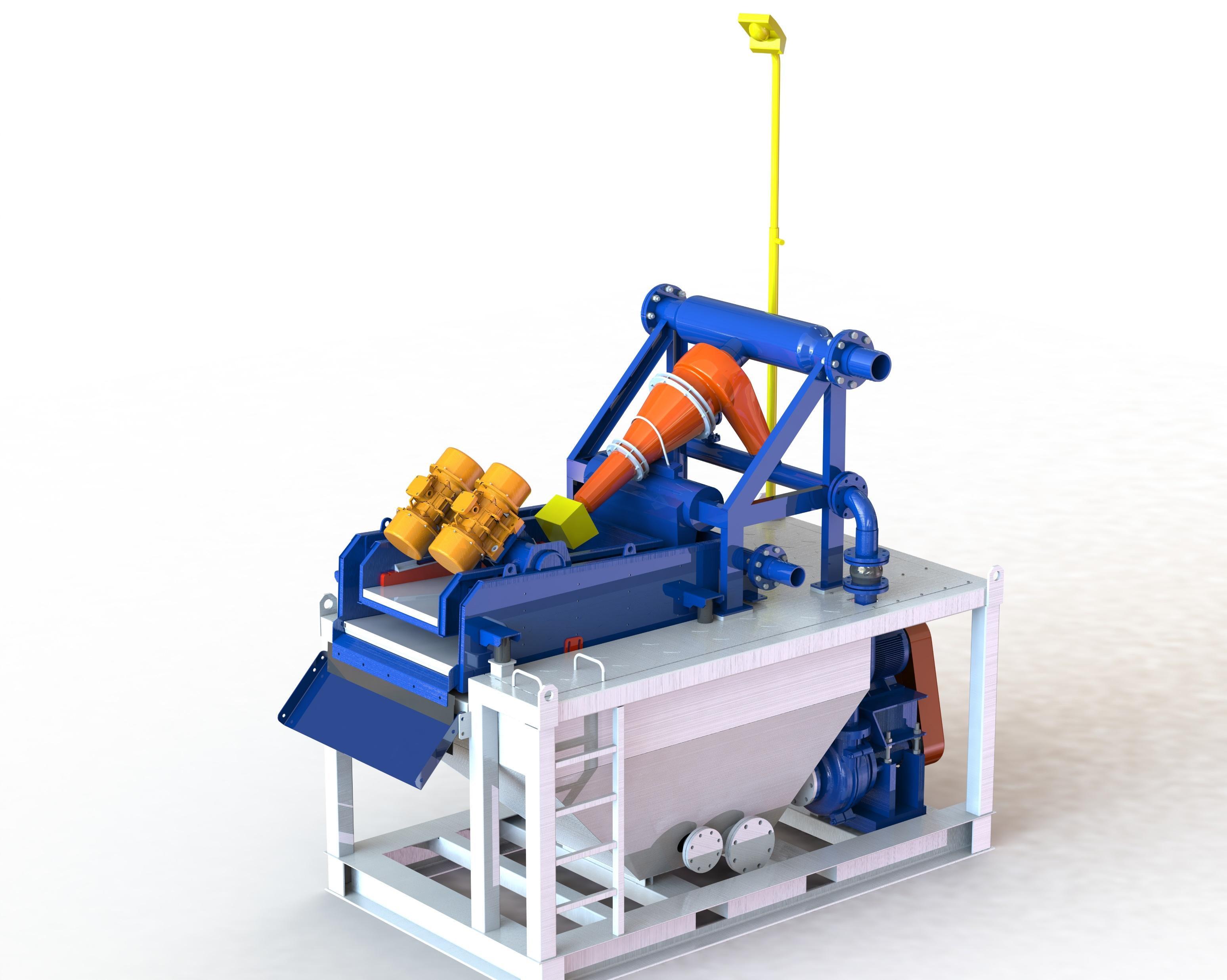

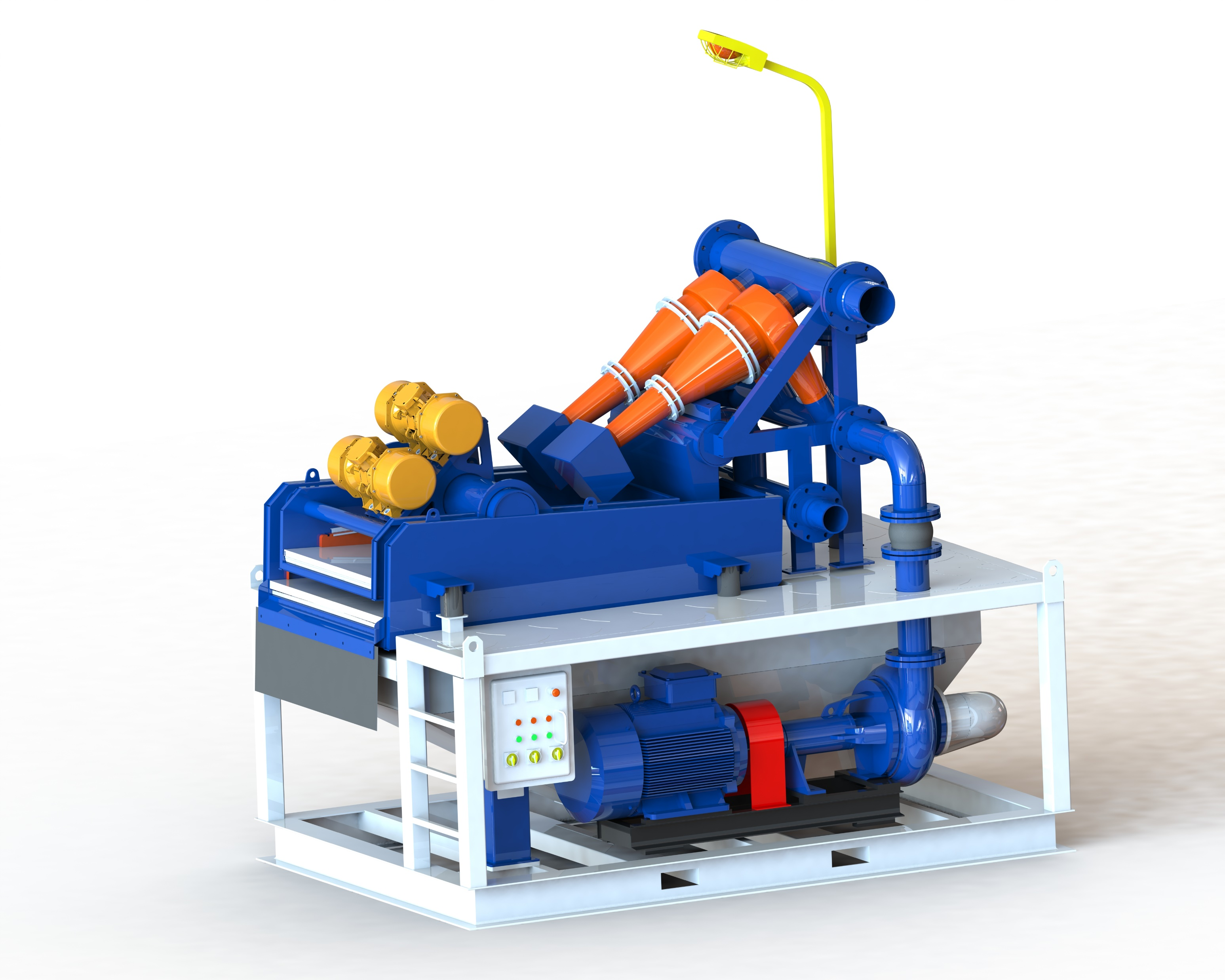

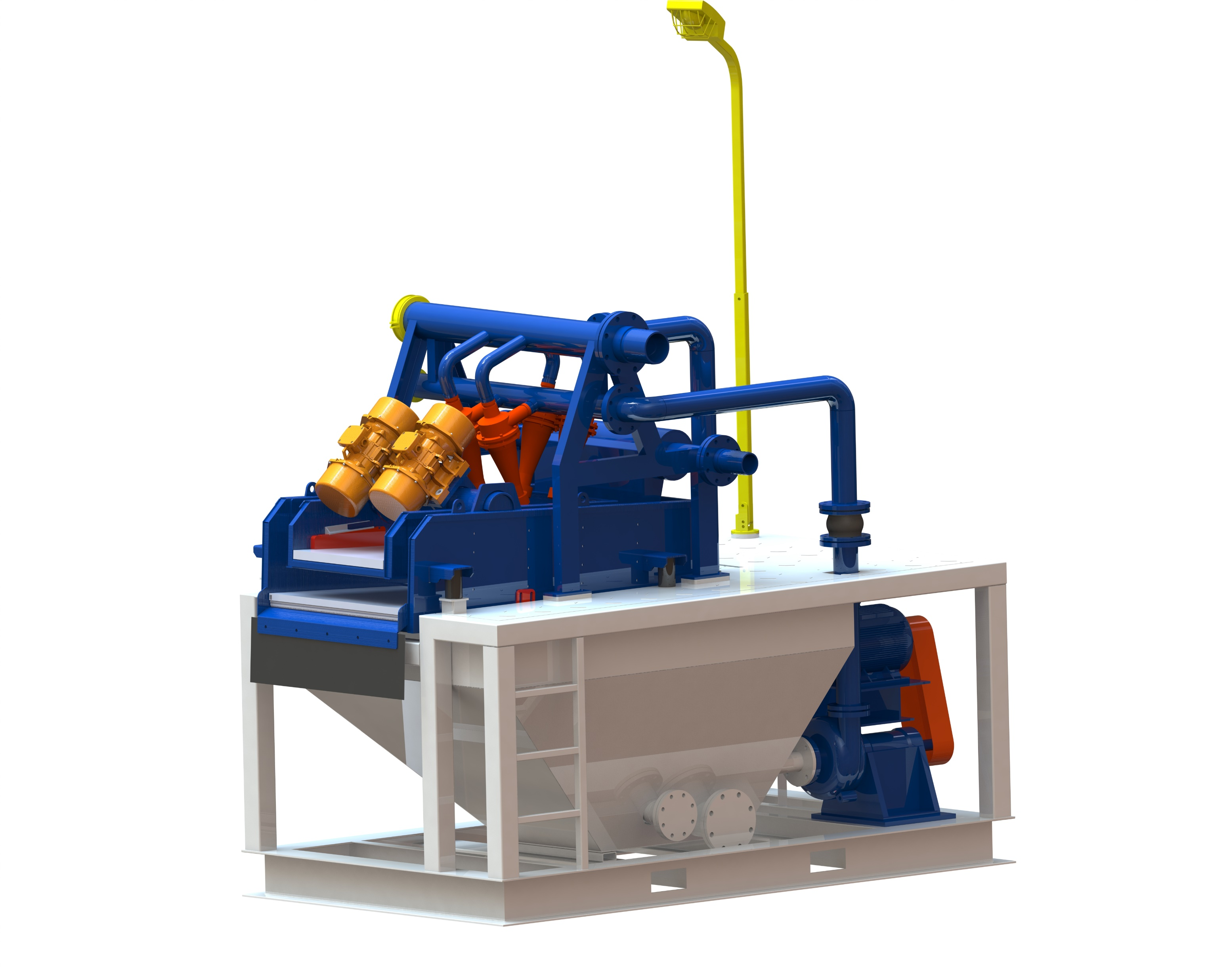

TECHNICAL SPECIFICATIONS
| Model | HYBZMS-50D | HYBZMS-120D | HYBZMS-240D |
|---|---|---|---|
| Capacity | ≤50m³/h | ≤120m³/h | ≤240m³/h |
| Separation Size | 15μm | 40μm | 40μm |
| Shaker-Cleaner | HYBZS753-4N | HYBZS753-1S | HYBZS585-2S |
| G Force | ≥7.1G (adjustable) | ≥7.1G (adjustable) | ≥7.1G (adjustable) |
| Up Screen Size | 0.68m² | 0.68m² | 1.35m² |
| Down Screen Size | 1.35m² | 1.35m² | 2.04m² |
| Cyclone Type | 4" | 10" | 10" |
| Cyclone Qty | 4 pcs | 1 pcs | 2 pcs |
| Mud Pump | HYBZSB-15 (15kW) | HYBZSB-22 (22kW) | HYBZSB-55 (55kW) |
| Motor Power | 1.2×2kW | 1.2×2kW | 1.94×2kW |
| Total Power | 17.5kW | 24.5kW | 59kW |
| Overall Dimensions | 2950×1700×2520mm | 3200×1700×2710mm | 3245×2226×2783mm |
| Weight | 1969kg | 3193kg | 3738kg |
Why Choose Our HDD Mud Recycling System?
- Rugged, field-proven design built specifically for trenchless HDD operations.
- Customizable configurations to match your rig fleet and project requirements.
- Easy setup and operation with excellent support and maintenance service.
- Focus on reliability, mobility, and sustainability for modern contractors.
- Turn your drilling fluid from a recurring expense into a reusable asset. Save money, reduce downtime, conserve resources, and complete projects more profitably with a high-efficiency HDD Mud Recycling System.

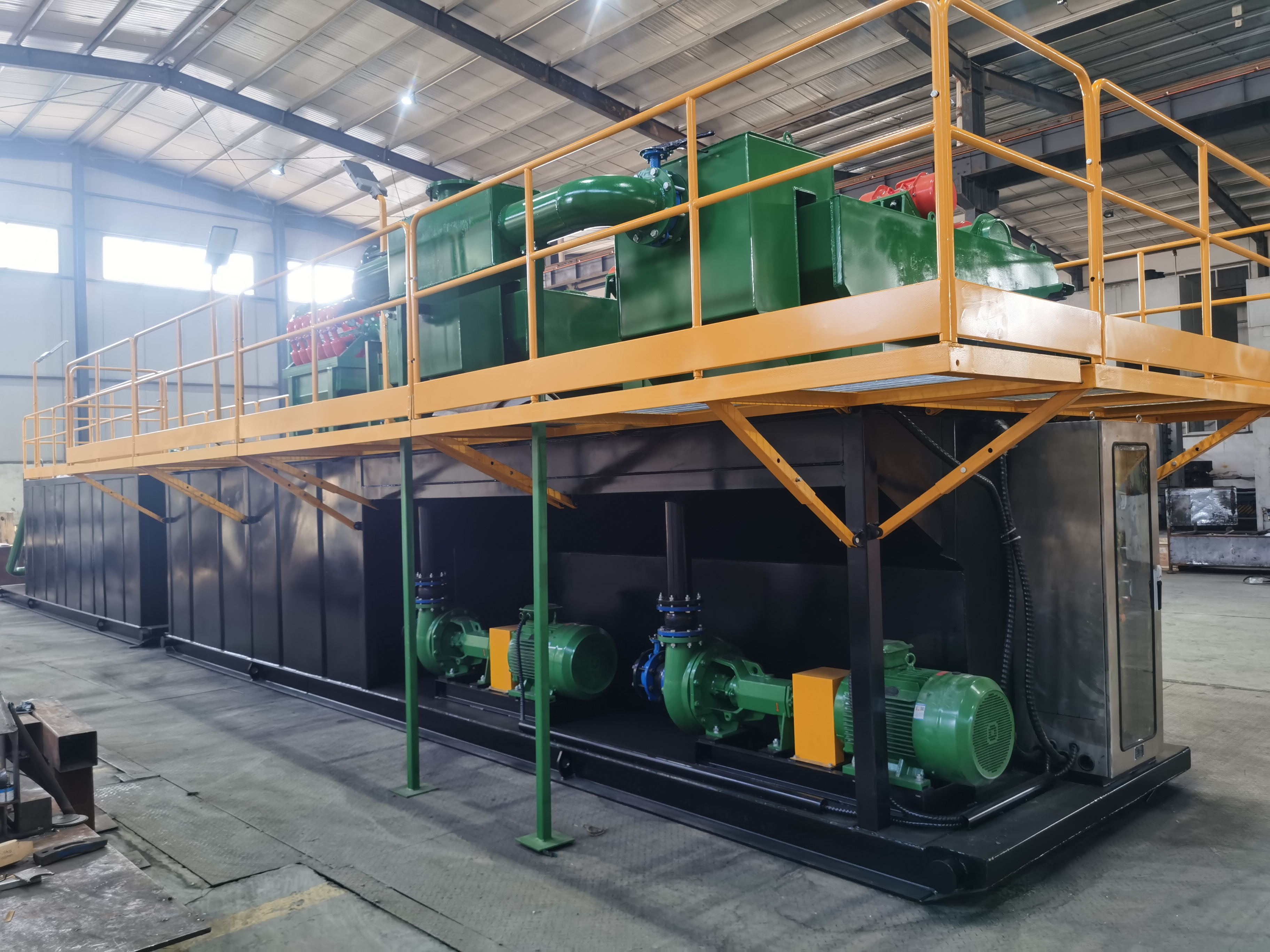

Case Studies
Trusted by Operators in the Field
Field Feedback
HDD Mud Recycling System FAQs
How does the HDD Mud Recycling System improve overall project profitability?
The system is engineered to transform drilling fluid from a recurring consumable cost into a reusable operational asset.
By continuously cleaning and reconditioning drilling mud, contractors can achieve:
50–80% reduction in total mud-related operational cost
Significant decrease in freshwater consumption and chemical usage
Lower transportation and disposal expenses
Reduced non-productive time (NPT) caused by mud instability
The result is a direct improvement in project margin and drilling efficiency across HDD operatio
By continuously cleaning and reconditioning drilling mud, contractors can achieve:
50–80% reduction in total mud-related operational cost
Significant decrease in freshwater consumption and chemical usage
Lower transportation and disposal expenses
Reduced non-productive time (NPT) caused by mud instability
The result is a direct improvement in project margin and drilling efficiency across HDD operatio
What operational risks does the system help eliminate in HDD drilling projects?
Uncontrolled solids buildup and inconsistent mud properties are major causes of drilling inefficiency.
Our multi-stage solids control architecture mitigates key risks:
Borehole instability caused by poor fluid quality
Excessive wear on pumps, bits, and downhole tools
Frequent mud replacement and downtime
Environmental non-compliance due to waste discharge
By stabilizing drilling fluid in real time, the system ensures safer, more predictable HDD execution.
Our multi-stage solids control architecture mitigates key risks:
Borehole instability caused by poor fluid quality
Excessive wear on pumps, bits, and downhole tools
Frequent mud replacement and downtime
Environmental non-compliance due to waste discharge
By stabilizing drilling fluid in real time, the system ensures safer, more predictable HDD execution.
How does the system ensure consistent drilling fluid performance in the field?
The system integrates a complete solids control and fluid conditioning process:
Coarse separation via high-capacity shale shakers
Fine solids removal using hydrocyclones (desander & desilter)
Optional centrifuge for ultra-fine particle control
Integrated mixing tanks with agitators for uniform fluid properties
Real-time flow and pressure monitoring for process stability
This ensures consistent mud quality even under changing geological conditions.
Coarse separation via high-capacity shale shakers
Fine solids removal using hydrocyclones (desander & desilter)
Optional centrifuge for ultra-fine particle control
Integrated mixing tanks with agitators for uniform fluid properties
Real-time flow and pressure monitoring for process stability
This ensures consistent mud quality even under changing geological conditions.
Is the system suitable for complex or space-constrained HDD job sites?
Yes. The system is designed specifically for modern trenchless HDD environments, including urban and restricted-access sites.
Key design advantages:
Compact modular skid or trailer configuration
Rapid deployment and relocation capability
Flexible layout adaptable to different rig setups
Minimal footprint without compromising processing capacity
It is optimized for contractors managing multiple short- to mid-distance HDD crossings.
Key design advantages:
Compact modular skid or trailer configuration
Rapid deployment and relocation capability
Flexible layout adaptable to different rig setups
Minimal footprint without compromising processing capacity
It is optimized for contractors managing multiple short- to mid-distance HDD crossings.
What level of environmental compliance and sustainability benefit does it deliver?
The system is engineered to support modern ESG and environmental requirements in drilling operations.
Key sustainability outcomes include:
Significant reduction in drilling waste volume
Lower groundwater and freshwater consumption
Reduced carbon footprint from logistics and disposal hauling
Improved compliance with environmental disposal regulations
It enables contractors to meet stricter environmental standards while reducing operational cost.
Key sustainability outcomes include:
Significant reduction in drilling waste volume
Lower groundwater and freshwater consumption
Reduced carbon footprint from logistics and disposal hauling
Improved compliance with environmental disposal regulations
It enables contractors to meet stricter environmental standards while reducing operational cost.
How easily can the system integrate into existing HDD fleets and workflows?
The system is designed for seamless integration with standard HDD operations worldwide.
It supports:
Compatibility with conventional mud pumps and mixing systems
Modular connection to existing mud tanks and hoppers
Scalable configurations for different rig sizes (200–1000+ GPM)
Retrofit deployment without major redesign of existing setups
This allows contractors to upgrade performance without replacing their current rig infrastructure.
It supports:
Compatibility with conventional mud pumps and mixing systems
Modular connection to existing mud tanks and hoppers
Scalable configurations for different rig sizes (200–1000+ GPM)
Retrofit deployment without major redesign of existing setups
This allows contractors to upgrade performance without replacing their current rig infrastructure.
Let’s build a sustainable oilfield future together!
Whether developing a new drilling project or enhancing an existing solids control system, Henyo Petro delivers proven equipment, engineering expertise, and integrated solutions that help improve drilling efficiency, maximize fluid recovery, and reduce waste.
