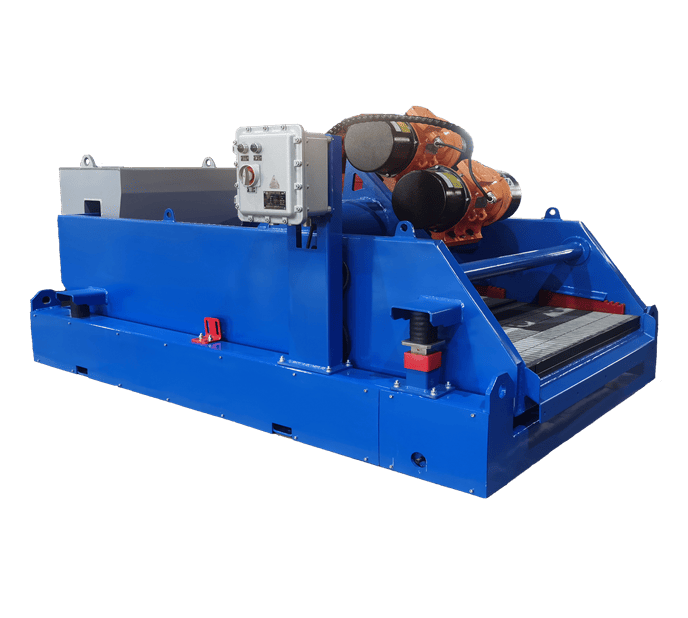

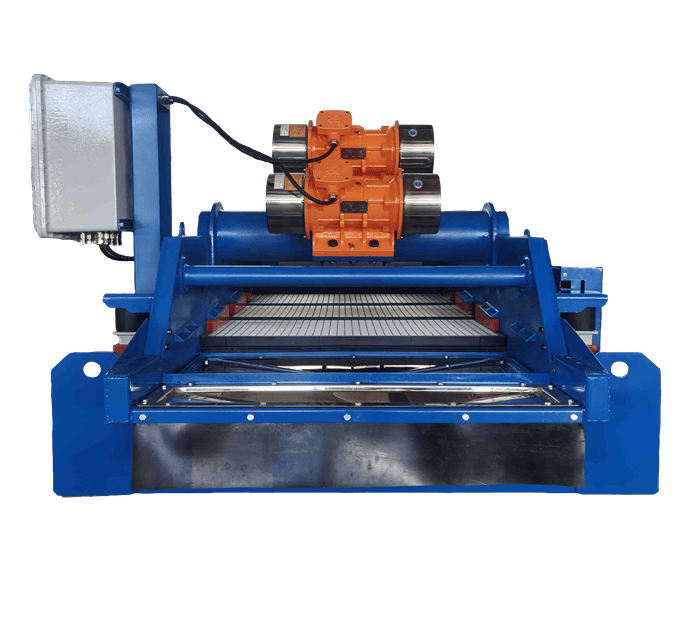

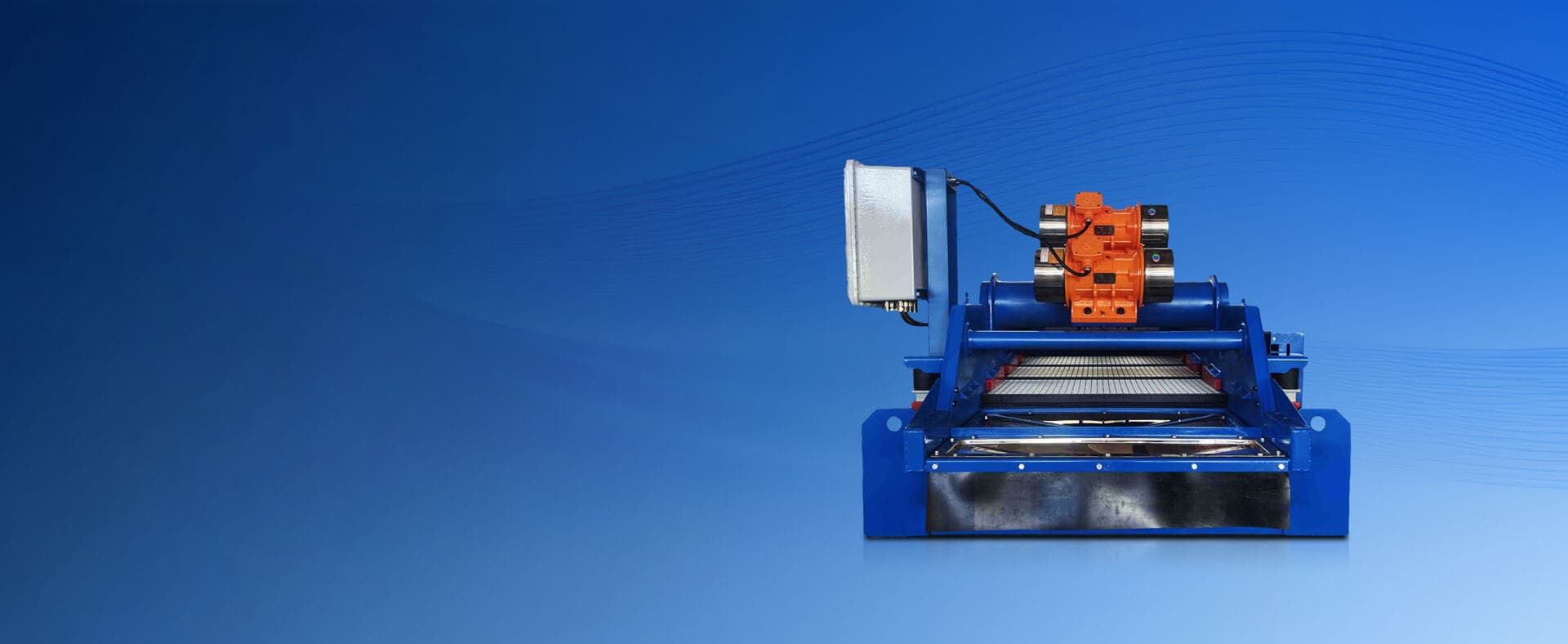

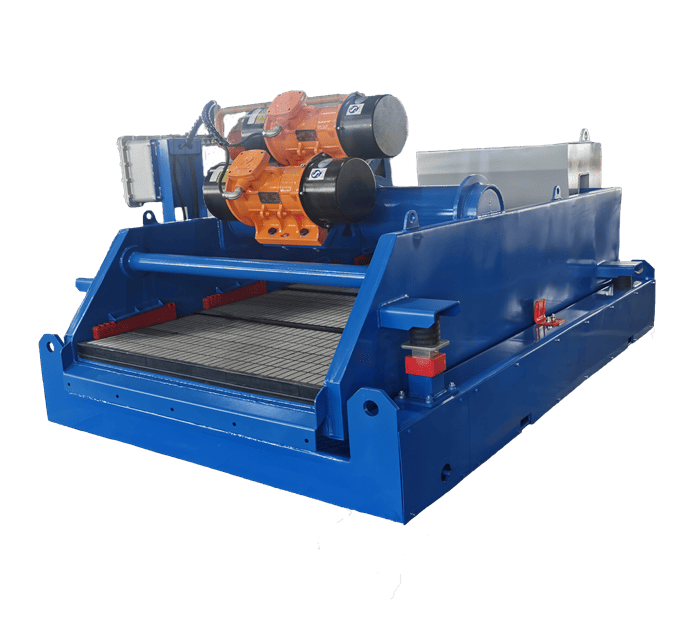

Shale Shaker

Maximize Fluid Recovery. Improve Drilling Performance. Reduce Operating Costs.

Adjustable High G Force ≥7.5G
Processing Capacity Up to 165 m³/h
Suitable forWBM,OBM &SBM
IECEx/ATEX Certified

Requesta Quote Download Brochure

Revolutionize Your Drilling Efficiency

In today's demanding drilling environments, effective solidscontrol is critical to maintaining drilling fluid quality,maximizing ROP(rate of penetration), protectingdownstream equipment, and reducing non-productive time(NPT).The Intelligent Shale Shaker delivers next-generation performance with intelligent automation, highG-force capabilities, and superior separation efficiency.

Related Documents

Shale Shaker Brochure

Download Brochure

Features Benefits

Intelligent Control System

Automated vibration adjustment and real-time monitoring optimize performance across varying drilling conditions.

High & Adjustable G-Force

Delivers powerful, tunable vibration for superior cuttings conveyance and fluid recovery.

Large Screen Area

Maximizes processing capacity for high-flow rates.

Adjustable Deck Angle

Quick, on-the-fly adjustments to handle different mud properties and solids loads.

Compact & Robust Design

Space-efficient skid-mounted configurations (single, double, or triple shakers) with durable construction for land and offshore rigs.

High Processing Capacity

Excellent performance on a wide range of materials — from top-hole sections to deep, high-pressure wells.

Increased Drilling Speed

Better solids removal maintains optimal mud weight and rheology.

Cost Savings

Reduced mud dilution, lower disposal volumes, and extended life of downstream equipment (centrifuges, pumps, etc.).

Environmental Compliance

Drier cuttings and better fluid recovery support greener operations.

Reliability

Proven in oil & gas, CBM, HDD, and geothermal drilling.

Ease of Maintenance

Quick screen changes, accessible components, and intelligent diagnostics.

Shale Shaker Specifications

Model	HYBZS752	HYBZS583	HYBZS584	HYBZS585/BZS585S	HYBZS586D
Vibration mode	Linear Motion / Double Track
Capacity	60m³/h	120m³/h	140m³/h	165m³/h	140m³/h
Motor	2×0.8kW	2×2.2kW	2×2.2kW	2×2.2+1×1.3kW	2×2.2kW
Screen Qty(pcs)	2	3	4	5	6
Screen Size	750×900mm	585×1165mm	585×1165mm	585×1165mm	Up：750×900mm Down：585×1165mm
Adjustable G Force	≥7.5G (Adjustable)
Vibration Amplitude	4.5～6.0mm	4.5～6.0mm	4.5～6.0mm	4.5-6.3mm	4.5-6.3mm
Deck Angle	0～+2°	-1°～+5°
Noise	<85db<>
EX Standard	ExdIIBt4/IECEX/A-TEX
Weight	900kg	1380kg	1530kg	1950kg	1630kg
Dimension	1659×1321×1040mm	2415×1978×1415mm	3004×1978×1415mm	3597×1978×1415mm	3004×1978×1415mm
Remark	Above capacity amount is just for reference, will be different depending on mesh number and mud conditions.

Applications

Oil & Gas Drilling (onshore & offshore)

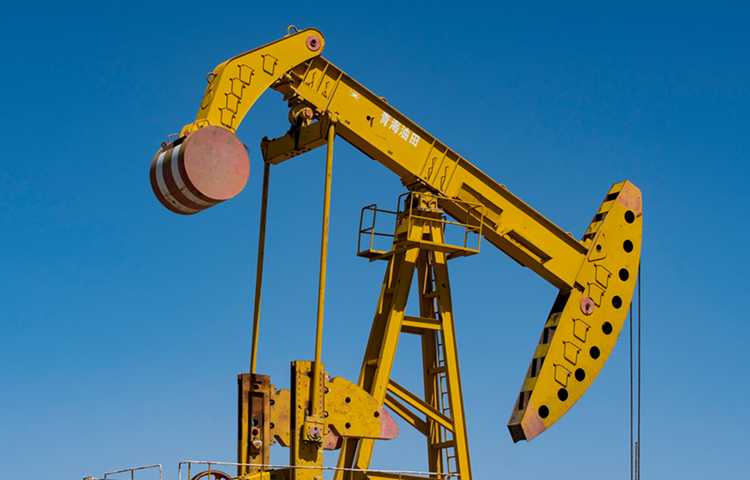

Horizontal Directional Drilling (HDD)

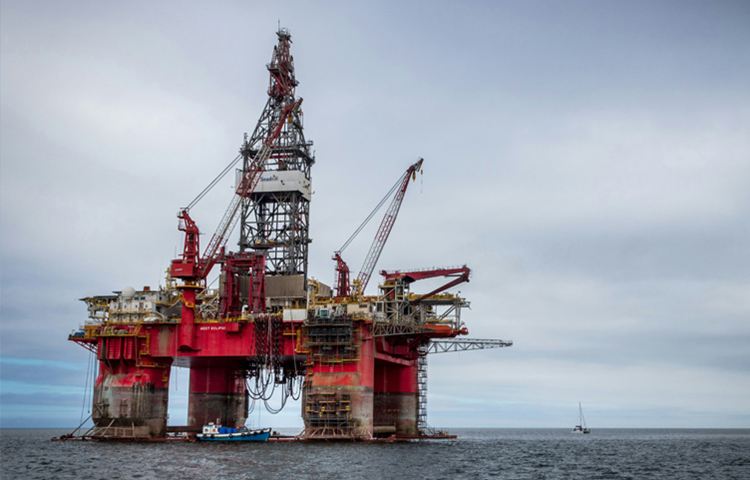

Coal Bed Methane (CBM)

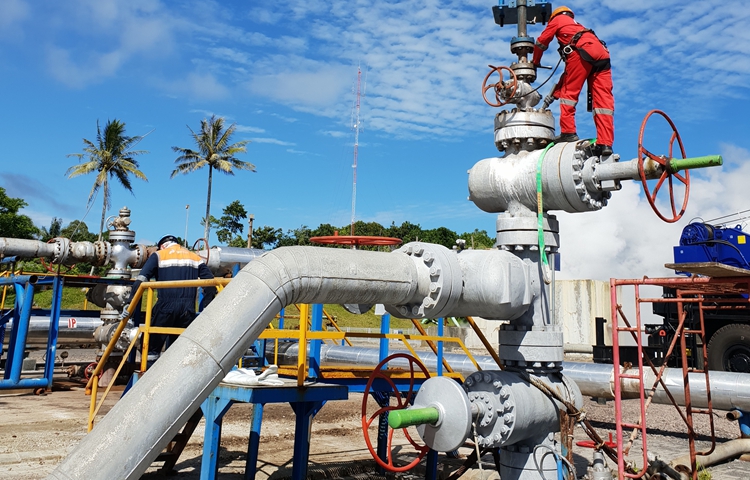

Geothermal & Water Wells

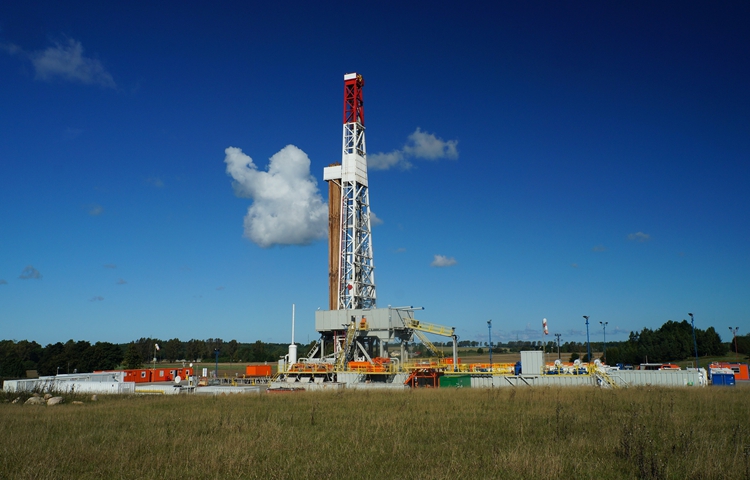

Mud Recycling Systems

Result

Cleaner mud, less waste, lower screen consumption, reduced dilution costs, and improved overall drilling economics.

Shale Shaker FAQs

What is the primary function of a shale shaker in drilling operations?

The Shale Shaker is the first and most critical stage of solids control in a drilling fluid system. Its primary function is to remove large drilled cuttings from the returning mud stream, ensuring cleaner drilling fluid for downstream equipment. Effective shaker performance directly impacts mud quality, rate of penetration (ROP), and overall drilling efficiency.

Why is shale shaker performance important?

Shaker perfomance directly affects drilling fluid quality, downstream equipment efficiency, and overall solids control costs.

How does the Intelligent Shale Shaker improve solids control performance?

The system integrates intelligent control technology with adjustable high G-force vibration to optimize separation efficiency under varying drilling conditions. Real-time monitoring and automated vibration adjustment ensure consistent cuttings conveyance, improved fluid recovery, and stable performance even during changes in flow rate, formation type, or mud properties.

Can the shale shaker handle high-flow and deep well drilling conditions?

Yes. The shaker is designed for high-capacity operations with a large screening area and adjustable deck angle to accommodate different drilling stages, from top-hole sections to deep, high-pressure wells. It is suitable for high-flow mud systems commonly used in onshore, offshore, and extended-reach drilling operations.

What are the advantages of the intelligent control system?

The intelligent control system continuously monitors operating conditions and automatically adjusts vibration parameters to maintain optimal separation efficiency. This reduces operator dependency, minimizes screen blinding, improves solids discharge consistency, and enhances overall equipment reliability under dynamic drilling environments.

How does the shale shaker impact operational costs and drilling efficiency?

By improving solids removal at the first stage, the system reduces mud dilution requirements, lowers waste disposal volumes, and extends the life of downstream equipment such as desanders, desilters, and centrifuges. This results in reduced non-productive time (NPT), improved rate of penetration (ROP), and lower total cost per drilled meter.

Is the shale shaker suitable for harsh or remote drilling environments?

Yes. The system is engineered for demanding field conditions including desert, offshore, Arctic, and remote land drilling operations. Its robust skid-mounted design, durable components, and simplified maintenance structure ensure reliable performance, fast screen replacement, and minimal downtime in challenging operational environments across global markets.
