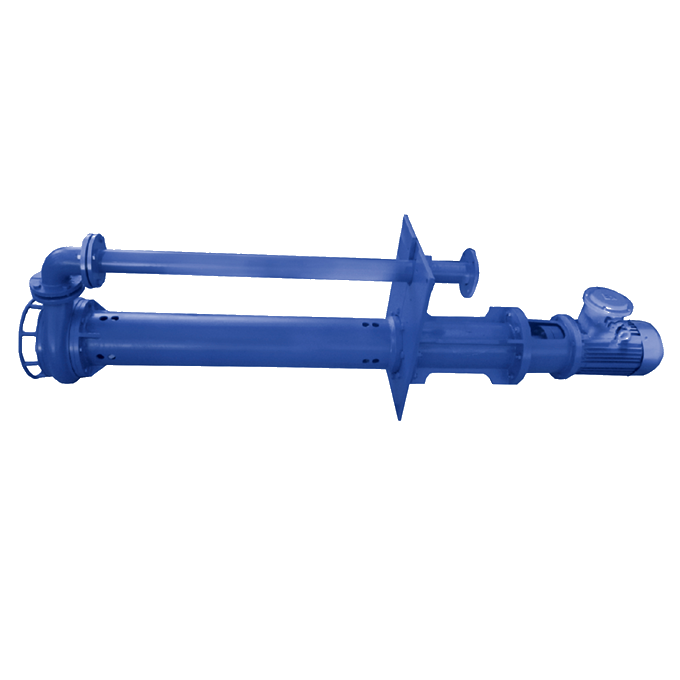

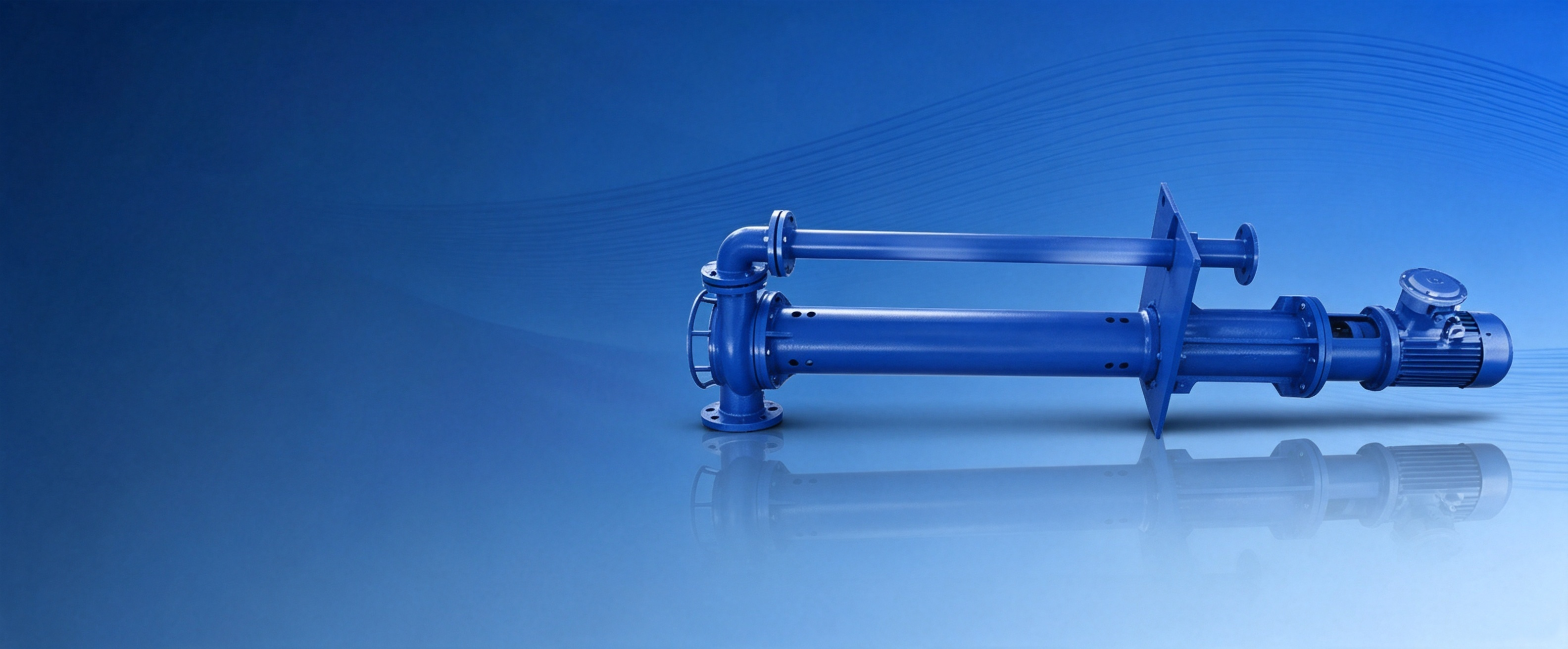

Submersible Slurry Pump

Move Tough Slurries with Power, Reliability & Efficiency

70% High-Solids Slurry Handling Capacity
High-Chrome Wear-Resistant Construction
Anti-Clogging Agitator & Large Passage Design
Compact, Reliable & Submersible Operation

Requesta Quote Download Brochure

Move Tough Slurries with Power, Reliability & Efficiency

Handling abrasive, high-solids slurries in mining, dredging, drilling waste management, tunneling, construction, and wastewater applications is one of the toughest jobs on site. Traditional pumps often fail due to clogging, excessive wear, or priming issues. Our Submersible Slurry Pump is engineered for extreme conditions — delivering reliable performance while fully submerged, even with solids concentrations up to 70%.

Related Documents

Move Tough Slurries with Power, Reliability & Efficiency

Submersible Slurry Pump Brochure

Download Brochure

Features Benefits

High-Chrome Alloy Wear Parts

Impeller, volute, and liner made from premium abrasion-resistant materials for extended service life in harsh slurries.

Heavy-Duty Agitator

Powerful bottom agitator keeps solids in suspension, preventing clogging and ensuring consistent flow.

Robust Motor Design

Class H insulation, thermal protection, and double mechanical seals to prevent slurry ingress and allow run-dry capability in many models.

Large Passage Impeller

Handles large particles (up to 60mm+ depending on model) without clogging.

Compact & Portable

Easy to lower into sumps, pits, tanks, or ponds — no complex priming or infrastructure required.

Wide Range

Available in power ratings from 4 kW to 45 kW, flow rates up to 270 m³/h, and high-head configurations.

Exceptional Durability

Resists abrasion and corrosion, significantly reducing maintenance frequency and downtime.

High Efficiency

Lower energy consumption compared to surface pumps, with no priming or cavitation issues.

Cost Savings

Extended wear life, reduced spare parts usage, and lower overall operating costs.

Versatility

Handles sand, gravel, coal, tailings, drilling mud, bentonite slurry, and other challenging mixtures.

Safety & Convenience

Quiet operation (submerged), minimal vibration, and easy installation in confined or deep spaces.

Reliability

Designed for continuous duty in the harshest environments — mining, geothermal, CBM, dredging, and industrial sumps.

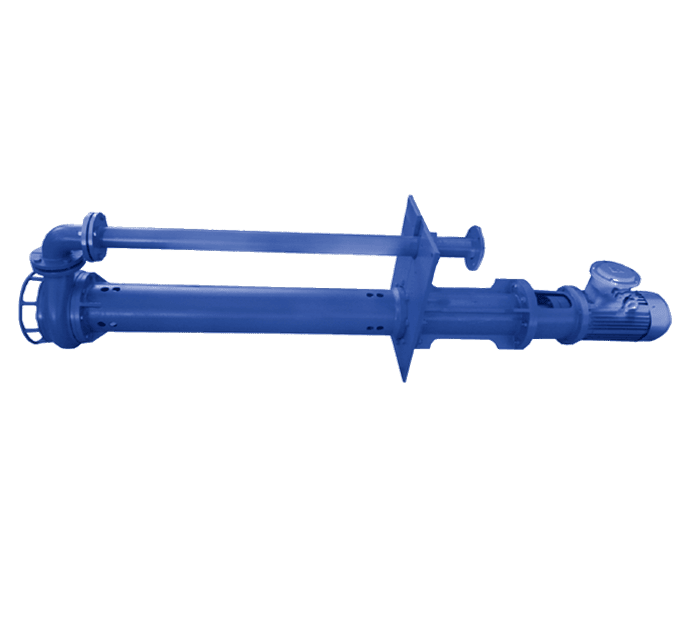

Submersible Slurry Pump Specifications

HYYZ Series Technical Parameters

Model	Capacity m³/h	Lift	Motor	Speed	Outlet	EX Standard	Weight	Overall Dimensions
HYBZYZ30-040	30m³/h	10m	4kW	1450RPM（50HZ） 1750RPM（60HZ）	DN50	ExdIIBt4/IECEX/A-TEX	370kg	2620×500×720mm
HYBZYZ40-055	40m³/h	10m	5.5kW	1450RPM（50HZ） 1750RPM（60HZ）	DN50	ExdIIBt4/IECEX/A-TEX	600kg	2700×500×700mm
HYBZYZ60-075	60m³/h	18m	7.5kW	1450RPM（50HZ） 1750RPM（60HZ）	DN80	ExdIIBt4/IECEX/A-TEX	610kg	2650×500×700mm
HYBZYZ80-110	80m³/h	20m	11kW	1450RPM（50HZ） 1750RPM（60HZ）	DN80	ExdIIBt4/IECEX/A-TEX	715kg	2750×580×730mm
HYBZYZ110-185	110m³/h	24m	18.5kW	1450RPM（50HZ） 1750RPM（60HZ）	DN100	ExdIIBt4/IECEX/A-TEX	840kg	2900×600×900mm
HYBZYZ120-220	120m³/h	28m	22kW	1450RPM（50HZ） 1750RPM（60HZ）	DN100	ExdIIBt4/IECEX/A-TEX	880kg	2950×600×900mm
HYBZYZ165-300	165m³/h	26m	30kW	1450RPM（50HZ） 1750RPM（60HZ）	DN100	ExdIIBt4/IECEX/A-TEX	1300kg	3100×750×900mm
HYBZYZ240-370	240m³/h	24m	37kW	1450RPM（50HZ） 1750RPM（60HZ）	DN150	ExdIIBt4/IECEX/A-TEX	1420kg	3160×700×1130mm
HYBZYZ270-450	270m³/h	30m	45kW	1450RPM（50HZ） 1750RPM（60HZ）	DN150	ExdIIBt4/IECEX/A-TEX	1510kg	3190×700×1130mm

Result

Operators report 2–3× longer service intervals, reliable handling of 50-70% solids content, and major reductions in maintenance and replacement costs compared to standard pumps.

Submersible Slurry Pump FAQs

What types of solids and slurry can this submersible slurry pump handle?

The pump is designed for highly abrasive and high-density slurries, including sand, gravel, tailings, bentonite, drilling mud, coal slurry, dredged sediments, and mining waste. It can handle solids concentrations up to 70% depending on operating conditions and material configuration.

What is the maximum particle size the pump can pass without clogging?

Depending on the selected model and impeller design, the pump can typically pass solids up to 60 mm or larger. The large passage impeller combined with a bottom-mounted agitator ensures continuous material flow and minimizes blockage risk in high-solids environments.

How does the agitator improve pumping performance in real operating conditions?

The integrated heavy-duty agitator keeps settled solids in suspension at the suction zone, preventing sediment buildup around the pump intake. This ensures consistent slurry density, stable flow delivery, and reduced risk of clogging, particularly in static sumps, ponds, and settling tanks.

What measures are used to ensure durability in abrasive environments?

Critical wear components such as the impeller, volute, and liner are manufactured from high-chrome alloy materials designed for extreme abrasion resistance. Combined with double mechanical seals and a heavy-duty motor housing, the pump is engineered to extend service life under continuous harsh-duty operation.

Can the pump operate continuously in deep or submerged conditions?

Yes. The pump is specifically designed for full submersible operation in demanding environments. With Class H insulation, thermal protection systems, and sealed motor construction, it supports continuous duty operation in pits, sumps, tanks, and underwater installations.

What are the main operational advantages compared to conventional slurry pumps?

Compared to traditional surface-mounted or centrifugal slurry pumps, this submersible design eliminates priming issues, reduces cavitation risk, and minimizes suction limitations. Operators typically experience higher efficiency, lower energy consumption, reduced maintenance frequency, and significantly improved uptime in high-solids applications.
