Shaker Screens
Premium Solids Separation Technology for Maximum Performance
- API RP 13C Compliant Precision Separation
- 30–50% Increased Screening Area & Capacity
- Durable Stainless Steel Mesh Construction
- Wide Compatibility & Fast Installation
Premium Mesh Materials
Multi-layer stainless steel 304/316 wire mesh for exceptional durability, corrosion resistance, and cutting efficiency.
Advanced Screen Designs

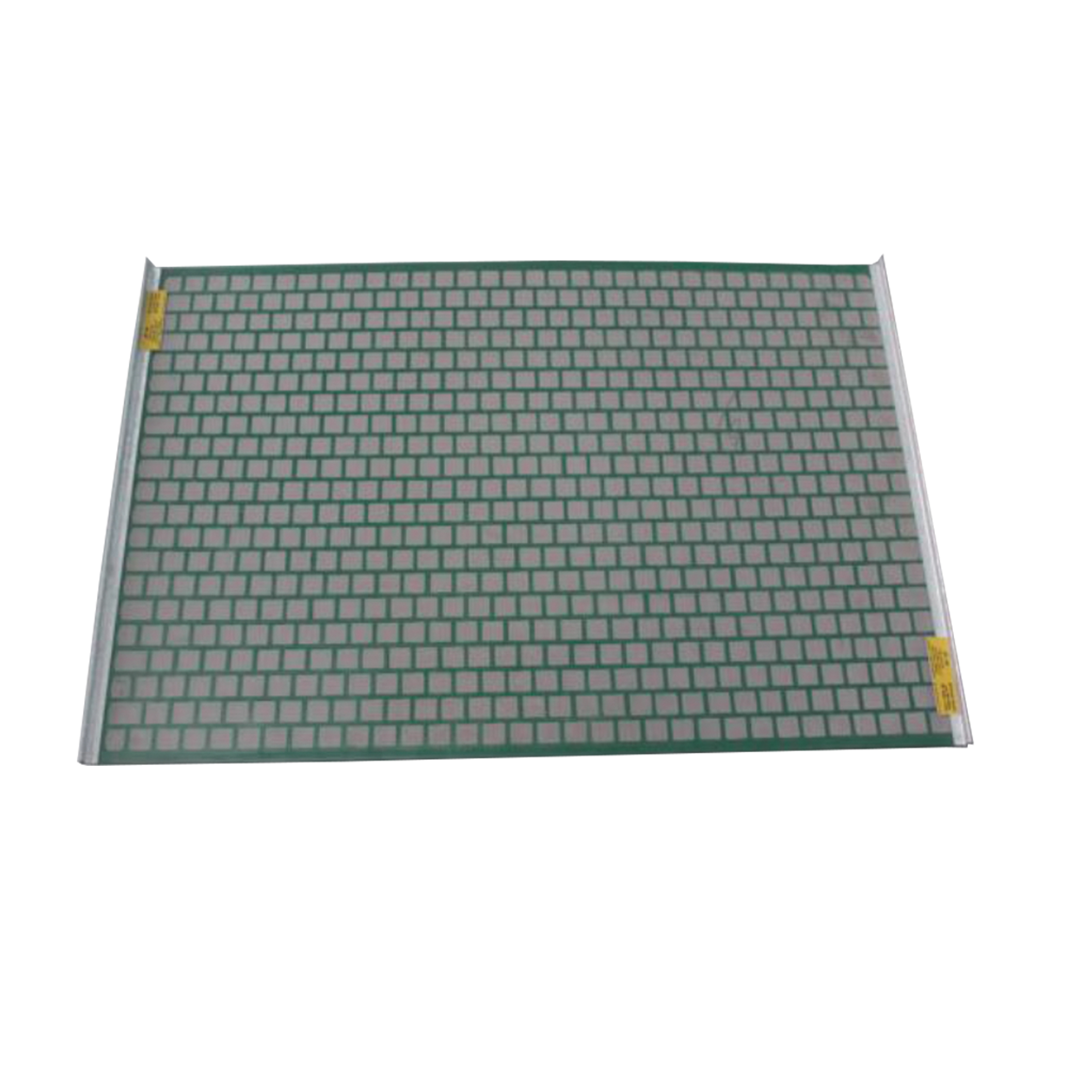

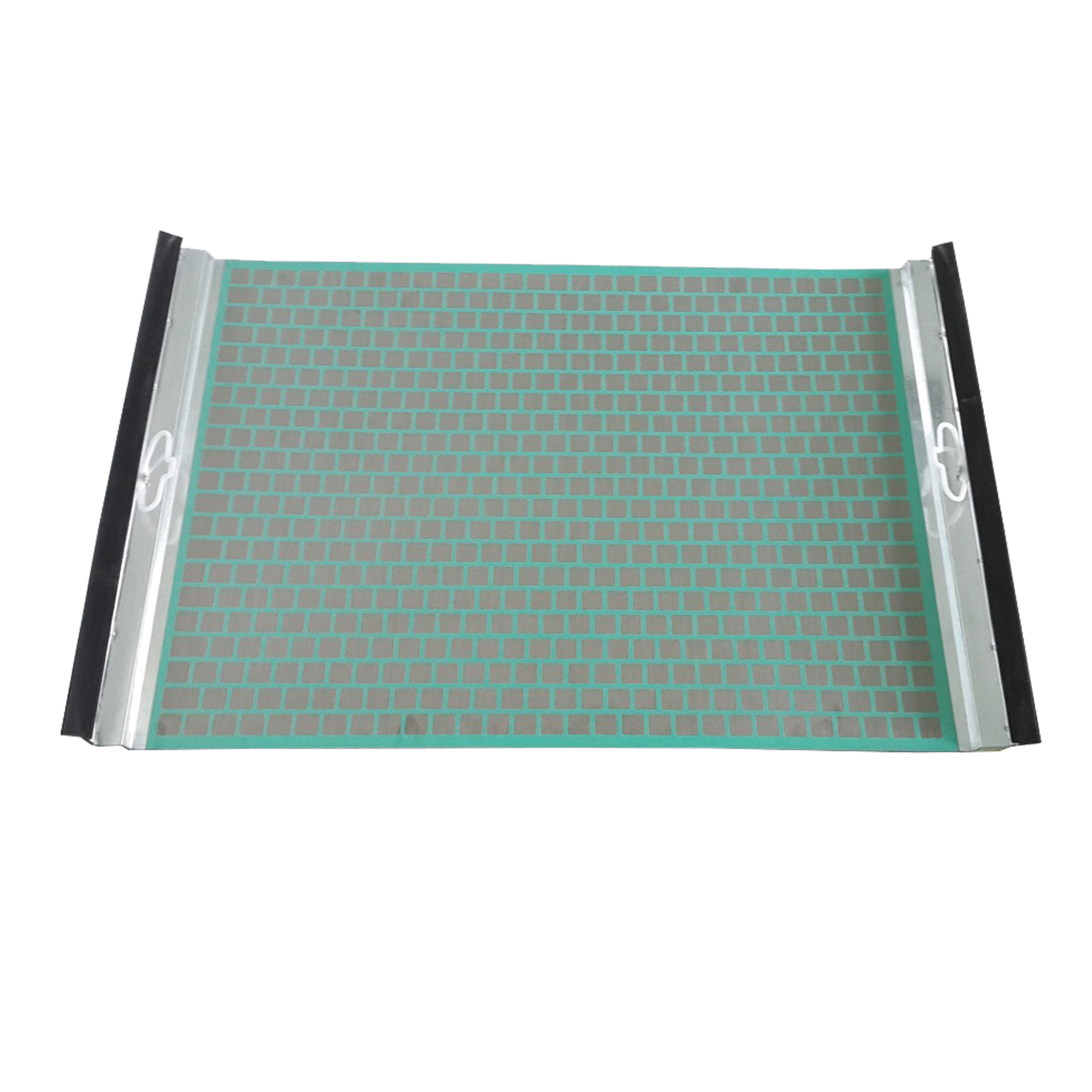

Flat (PWP) screens for standard applications

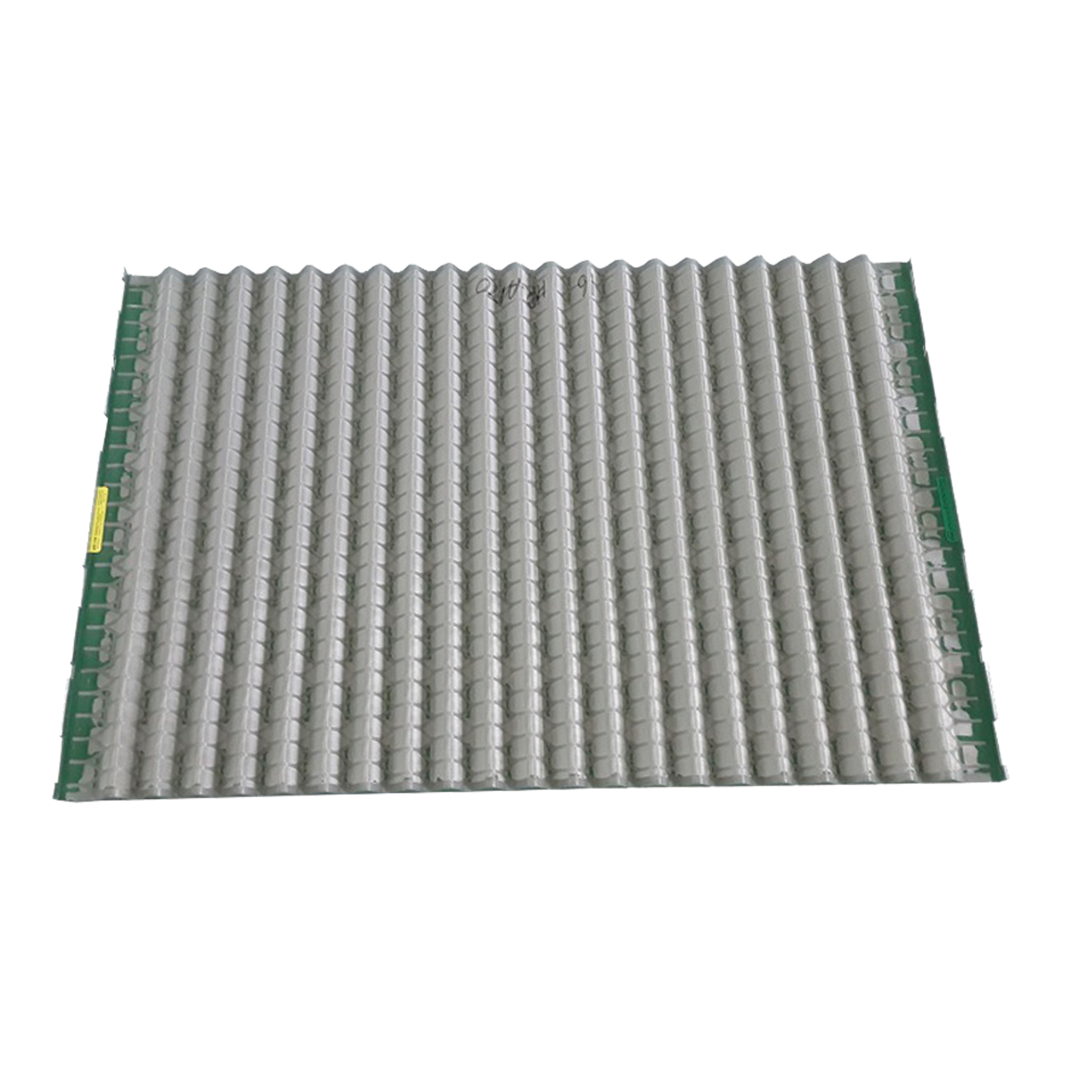

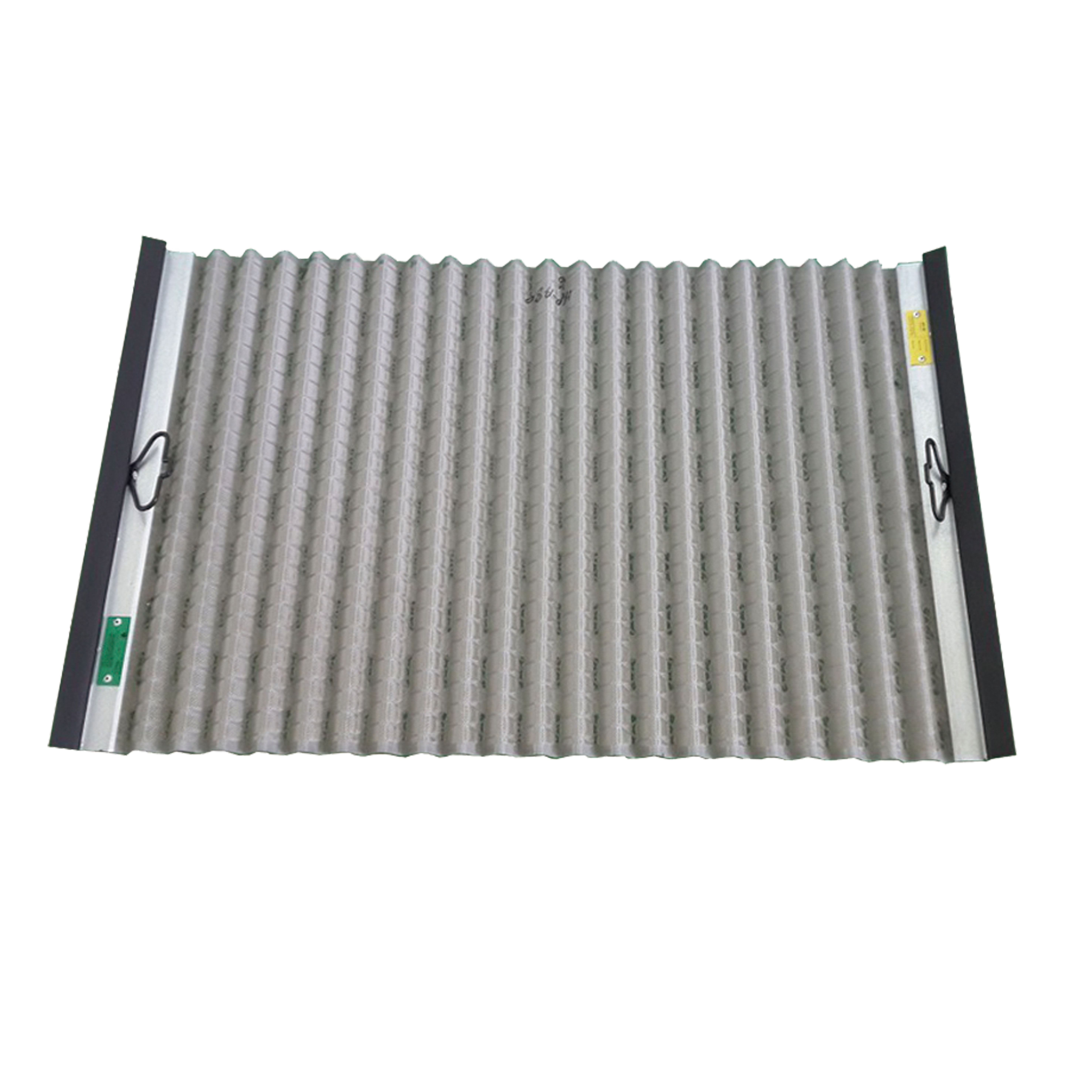

Pyramid / 3D screens for up to 30-50% more effective screening area and higher fluid handling capacity

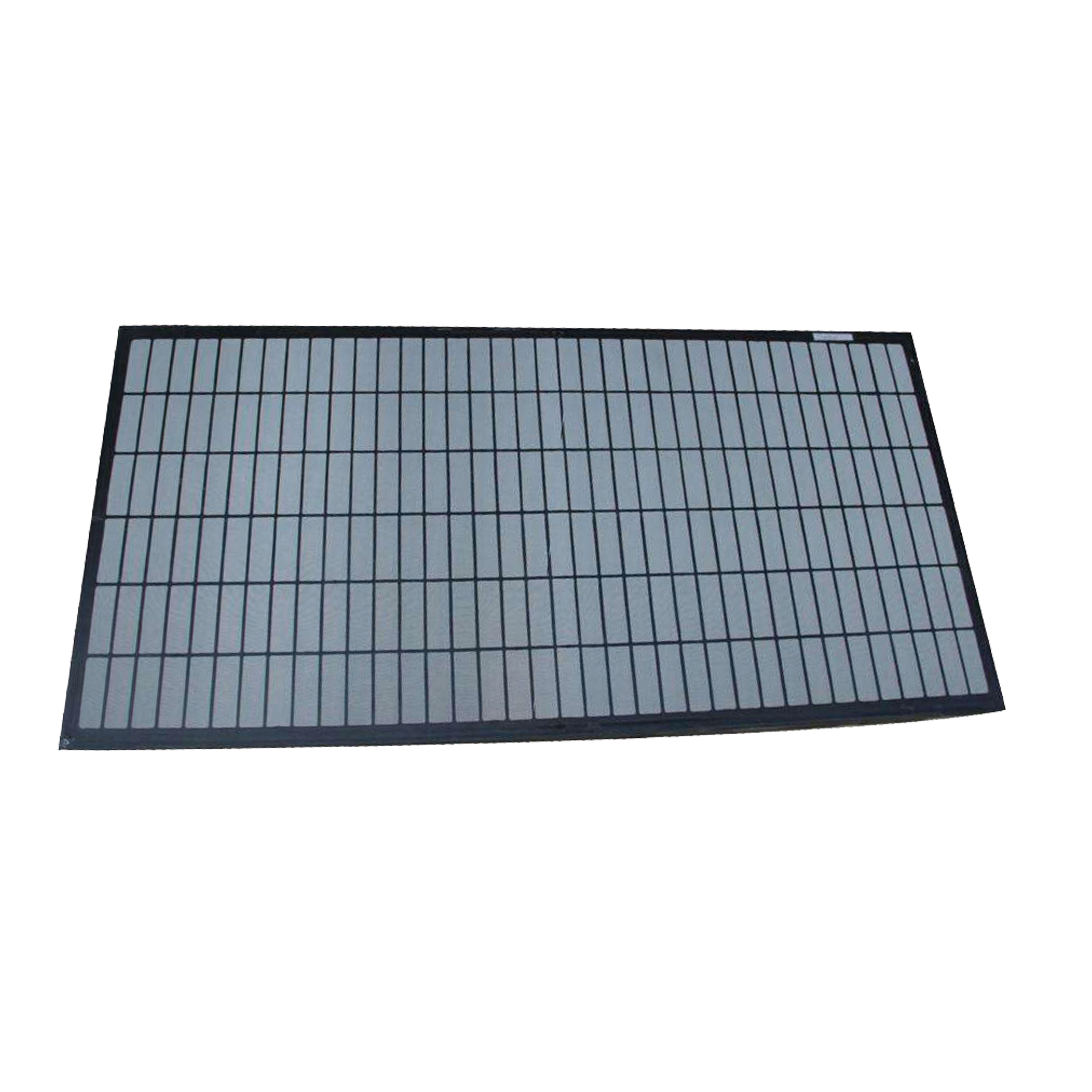

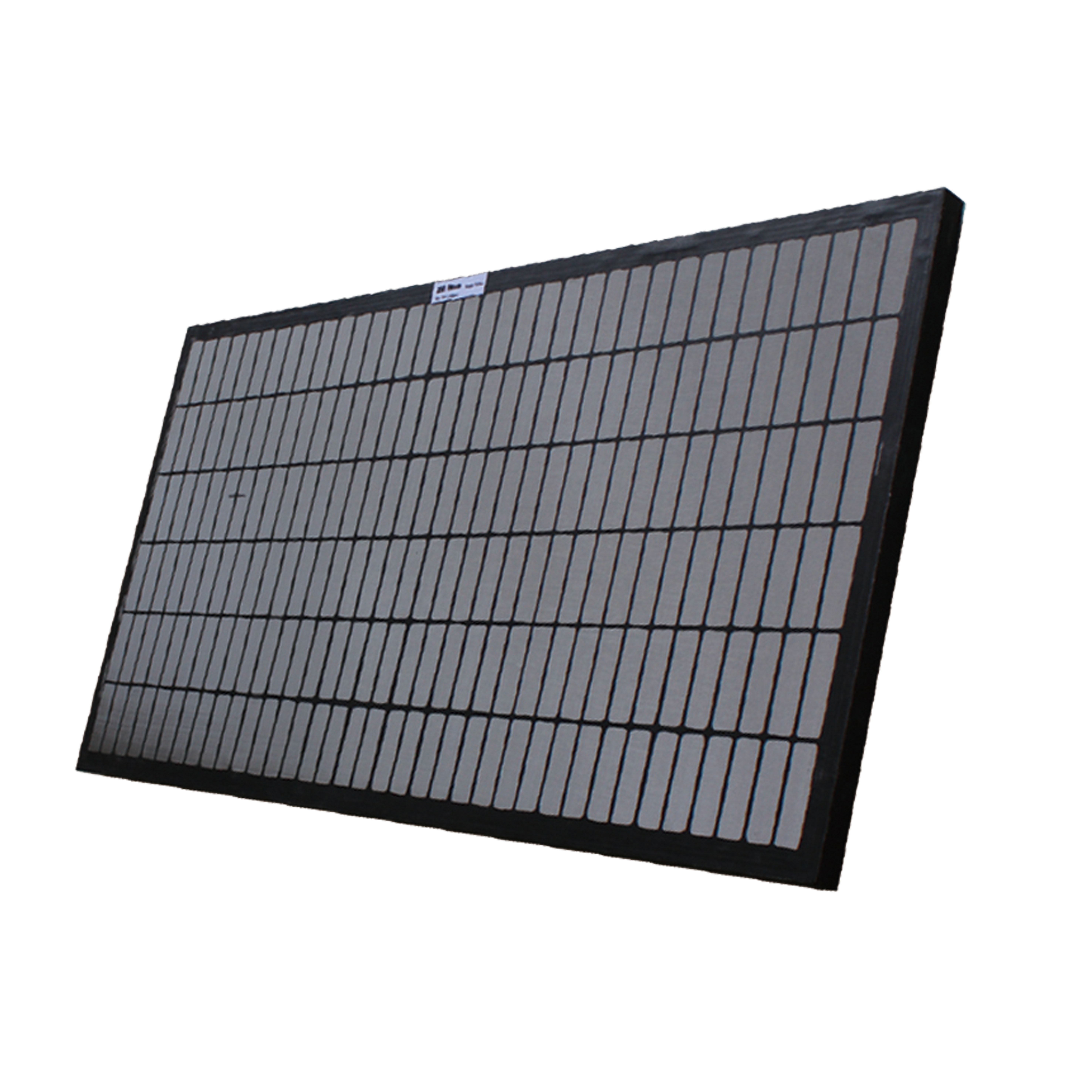

Composite frame screens for lightweight strength and reduced disposal weight
Pyramid / 3D screens for up to 30-50% more effective screening area and higher fluid handling capacity
Composite frame screens for lightweight strength and reduced disposal weight
API RP 13C Compliant
Precisely labeled with D100 cut points for consistent, reliable performance.
Fast & Secure Installation
Wedge or hook-strip designs for quick screen changes and minimal downtime.
Anti-Blinding Technology
Reduces plugging and blinding for sustained high-flow performance.
Extended Screen Life
Robust construction and superior bonding deliver longer runtime and lower replacement costs.
AVAILABLE SCREEN TYPES
Available Screen Types
| Mesh | Dimension | Adaptation model |
|---|---|---|
| 20-325 | 585×1165mm | Mongoose |
| 20-325 | 635×1253mm | KING COBRA |
| 20-325 | 650×913mm | VSM300 |
| 20-325 | 667×1250mm | KPT-26 |
| 20-325 | 715×1250mm | KPT-28 |
| 20-325 | 1020×1230mm | KPT-40 |
| 20-325 | 737×1067mm | FSI 5000 |
| 20-325 | 712×1180mm | D380 |
| API Size Parameters | |||
|---|---|---|---|
| API Number | D 100 Separation(Micron) | API Number | D 100 Separation(Micron) |
| API 20 | ＞780.0 TO 925.0 | API 100 | ＞137.5 TO 165.0 |
| API 30 | ＞550.0 TO 655.0 | API 120 | ＞116.5 TO 137.5 |
| API 35 | ＞462.0 TO 550.0 | API 140 | ＞98.0 TO 116.5 |
| API 40 | ＞390.0 TO 462.0 | API 170 | ＞82.5 TO 98.0 |
| API 50 | ＞275.0 TO 390.0 | API 200 | ＞69.0 TO 82.5 |
| API 60 | ＞213.0 TO 275.0 | API 230 | ＞58.0 TO 69.0 |
| API 70 | ＞196.0 TO 213.0 | API 270 | ＞49.0 TO 58.0 |
| API 80 | ＞165.0 TO 196.0 | API 325 | ＞41.5 TO 49.0 |
Applications
Oil & Gas drilling (onshore & offshore)
Horizontal Directional Drilling (HDD)
Geothermal wells
Coal Bed Methane (CBM)
Result
Drier cuttings, cleaner mud, reduced dilution volumes, lower disposal costs, and improved ROP.
SHAKER SCREENS FAQs
What is the primary role of shaker screens in solids control operations?
Shaker screens serve as the first stage of solids control in drilling fluid systems. Their primary function is to separate drilled cuttings from the drilling mud while allowing clean fluid to pass through. Screen performance directly impacts mud quality, downstream equipment efficiency, drilling rate of penetration (ROP), and overall well economics.
How do I select the correct screen type and mesh for my operation?
Screen selection depends on formation type, drilling fluid properties, and solids loading conditions. API RP 13C-compliant screens are used to define separation efficiency through D100 cut point ratings. Coarser meshes are typically applied in high-solids or fast drilling sections, while finer meshes are used for improved fluid recovery and cleaner mud conditions in deeper intervals.
What is the difference between flat screens and pyramid (3D) screens?
Flat (PWP) screens provide reliable performance for standard drilling conditions and general-purpose solids removal. Pyramid or 3D screens increase usable screening area by approximately 30–50%, delivering higher flow capacity, improved solids separation efficiency, and reduced screen blinding, especially in high-flow or high-viscosity drilling environments.
How long do shaker screens typically last in field operations?
Screen life depends on drilling conditions, solids abrasiveness, fluid chemistry, and shaker performance settings. Under optimized operating conditions, high-quality composite or stainless steel mesh screens can significantly extend service life. Proper tensioning, correct mesh selection, and reduced overloading are key factors in maximizing operational lifespan and minimizing screen replacement frequency.
Are these shaker screens compatible with all major shale shaker brands?
Yes. The screens are designed as OEM-style replacements compatible with most major shale shaker brands used globally in oil & gas drilling operations. Hook-strip and wedge-style configurations ensure fast installation and secure fitment across a wide range of shaker models used in onshore and offshore rigs.
What operational benefits can be expected from using premium shaker screens?
High-performance shaker screens improve drilling efficiency by delivering cleaner mud, reducing dilution requirements, and enhancing solids removal efficiency. This results in lower waste disposal costs, improved downstream equipment protection, reduced non-productive time (NPT), and better overall drilling performance through increased rate of penetration (ROP) and stable mud properties.
