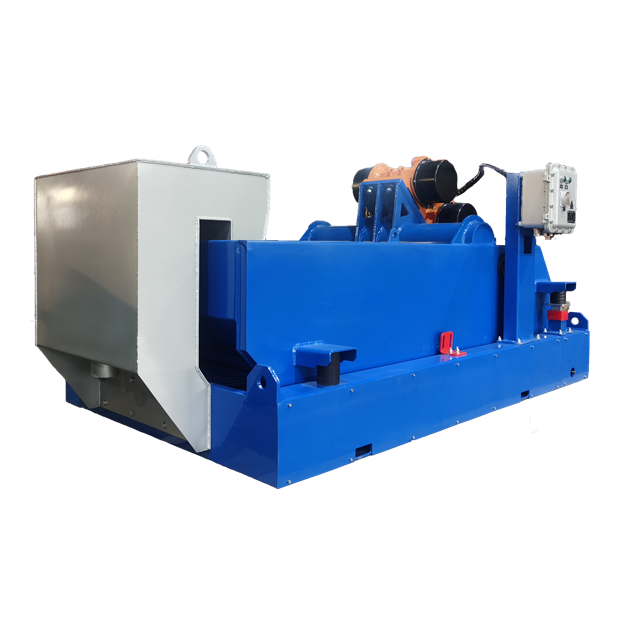

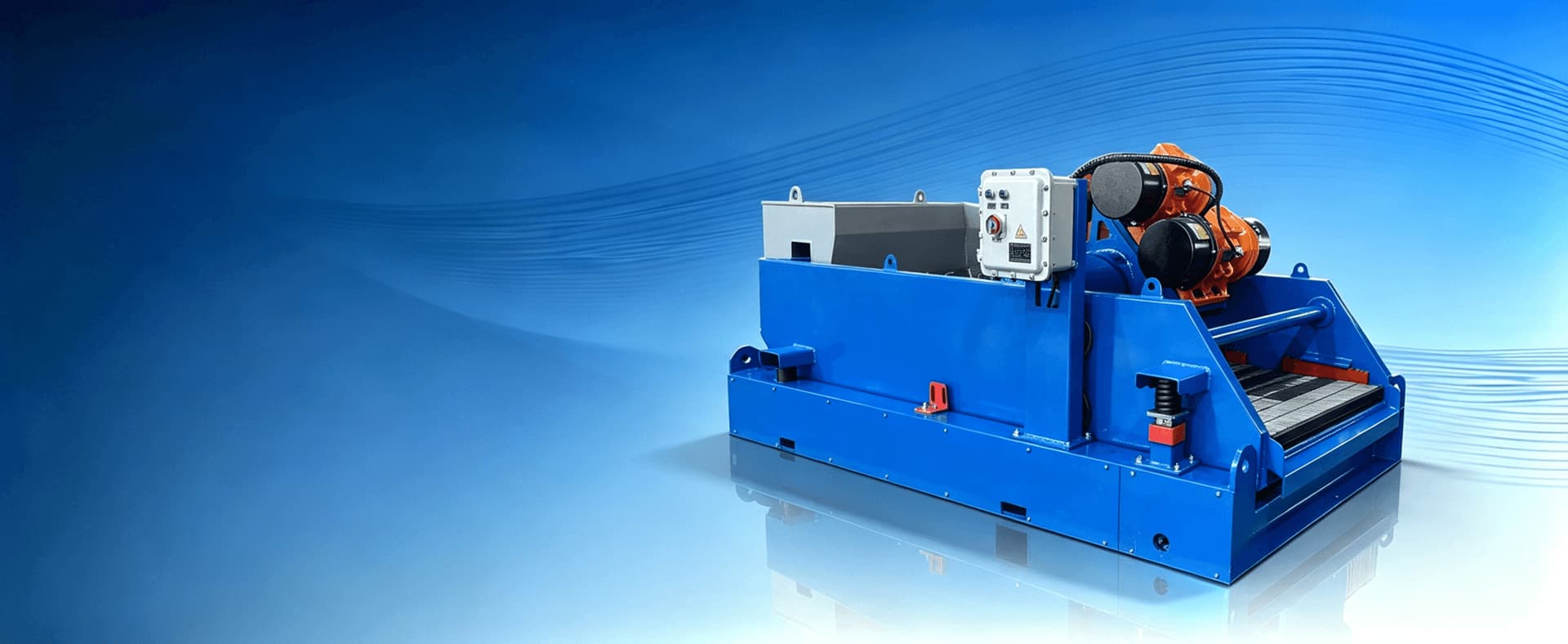

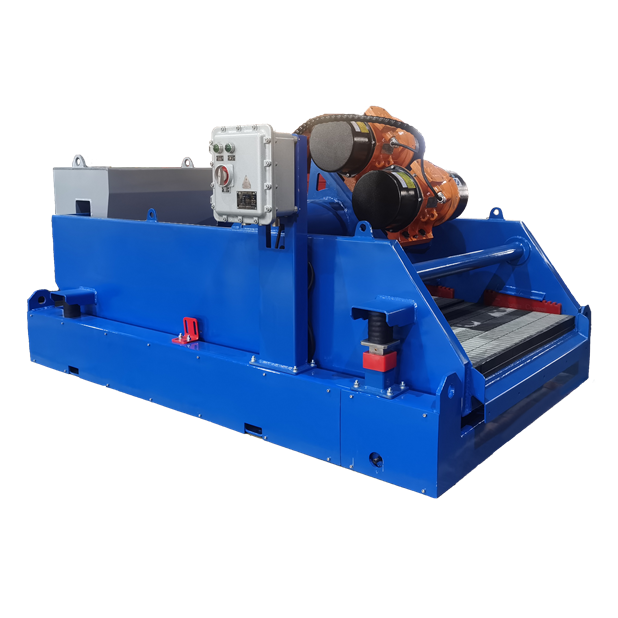

High-G Drying Shaker
Maximum Fluid Recovery & Drier Cuttings for Waste Management
- 8.0G High-Force Drying Performance
- Maximum Fluid Recovery & Drier Cuttings
- High Capacity Linear Motion Design
- Durable, Explosion-Proof & Reliable Operation
Optimize Your Drilling Waste Management
In modern drilling operations, reducing waste volume, recovering valuable drilling fluids, and meeting strict environmental regulations are essential. The High-G Drying Shaker is specifically engineered to dry drilling cuttings discharged from primary shale shakers, delivering superior performance in waste treatment systems.
With adjustable G-forces up to 8.0G, it effectively separates and recovers drilling fluids from cuttings, resulting in significantly drier solids and lower disposal costs.
With adjustable G-forces up to 8.0G, it effectively separates and recovers drilling fluids from cuttings, resulting in significantly drier solids and lower disposal costs.
Related Documents
High-G Drying Shaker Brochure
High G-Force Performance
Up to 8.0G (adjustable) for exceptional liquid/solids separation and drier cuttings discharge.
Linear Motion Design
Ensures smooth, efficient cuttings conveyance even with high viscosity or sticky materials.
Large Screen Area
4 or 5-panel pretensioned screens for high processing capacity.
Adjustable Deck Angle
Mechanical adjustment while operating to optimize performance under varying conditions.
Robust Construction
Heat-treated shaker deck to withstand high G-force, stainless steel bottom deck for corrosion resistance, and patented rubber sealing for longer screen life.
Low Profile Feeder Option
Facilitates easy transfer of cuttings from upstream equipment.
Explosion-Proof Motors
IEC Ex / ATEX certified for safe operation in hazardous areas.
Higher Fluid Recovery
Significantly reduces the liquid content on discharged cuttings
Cost Reduction
Lower mud replacement costs, reduced transportation & disposal volumes
Environmental Compliance
Drier cuttings help meet stricter discharge regulations.
Reliability
Proven heavy-duty design for continuous operation in harsh drilling conditions.
Easy Maintenance
Fast screen replacement and accessible components.
High-G Drying Shaker Specifications
| Model | GHYBZS584 | GHYBZS585/GBZS585S |
|---|---|---|
| Vibration mode | Linear Motion/Double Track | |
| Capacity | 140m³/h | 165m³/h |
| Motor | 2×2.2kW/2×2.2+1×1.3kW | |
| Screen Qty(pcs) | 4 | 5 |
| Screen Size | 585×1165mm | 585×1165mm |
| Adjustable G Force | ≥8.0G | |
| Vibration Amplitude | 5.0～6.5mm | |
| Deck Angle Range | -1°～5° | -1°～4° |
| Noise | <85db<> | |
| EX Standard | ExdIIBt4/IECEX/A-TEX | |
| Weight | 1530kg | 1950kg |
| Overall Dimensions | 3004X1978X1415mm | 3597X1978X1415mm |
| Remark | Above capacity amount is just for reference, will be different depending on mesh number and mud conditions. | |
Applications
Oil & Gas Drilling (Onshore & Offshore)
Horizontal Directional Drilling (HDD)
Mining & Mineral Processing

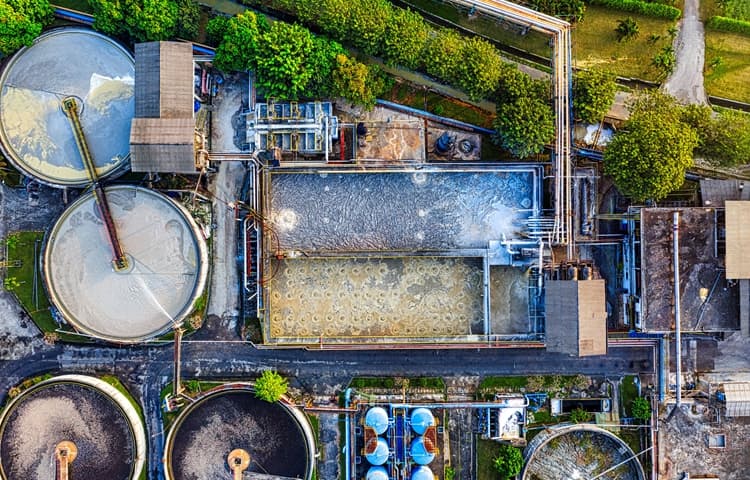

Waste Management & Environmental Treatment
Result:
Recover more drilling fluid, minimize haul-off volumes, reduce environmental impact, and lower overall waste management costs.
High-G Drying Shaker FAQs
What is the primary function of a High-G Drying Shaker?
The High-G Drying Shaker is designed to remove excess drilling fluid from cuttings discharged by primary shale shakers. By applying high centrifugal acceleration (up to 8.0G), it significantly reduces liquid content in solids, improves fluid recovery, and lowers overall waste volume for disposal or further treatment.
What types of drilling systems is this equipment suitable for?
It is widely used in water-based mud (WBM) systems and can also be integrated into zero-discharge or closed-loop drilling waste management systems. It is suitable for both onshore and offshore operations where efficient cuttings drying and fluid recovery are required.
How does the adjustable G-force improve performance?
The adjustable G-force allows operators to optimize separation efficiency based on drilling conditions and cuttings characteristics. Higher G-force improves liquid removal for wetter or finer cuttings, while lower settings help maintain stable conveying for more challenging or sticky materials.
Can the High-G Drying Shaker be integrated with other solids control equipment?
Yes. It is commonly configured as part of a complete waste management package and works effectively with vertical cuttings dryers, decanter centrifuges, screw conveyors, and solidification units to maximize fluid recovery and ensure continuous solids handling.
What design features ensure reliable operation in harsh environments?
The unit is built with a heavy-duty heat-treated shaker deck, corrosion-resistant stainless steel components, and robust sealing systems to extend screen life. Explosion-proof motors with IECEx/ATEX certification ensure safe operation in hazardous drilling environments.
What maintenance considerations should operators expect?
The system is designed for low maintenance with fast screen replacement, accessible wear components, and simplified mechanical adjustment of deck angle. These features reduce downtime and support continuous operation under demanding field conditions.
