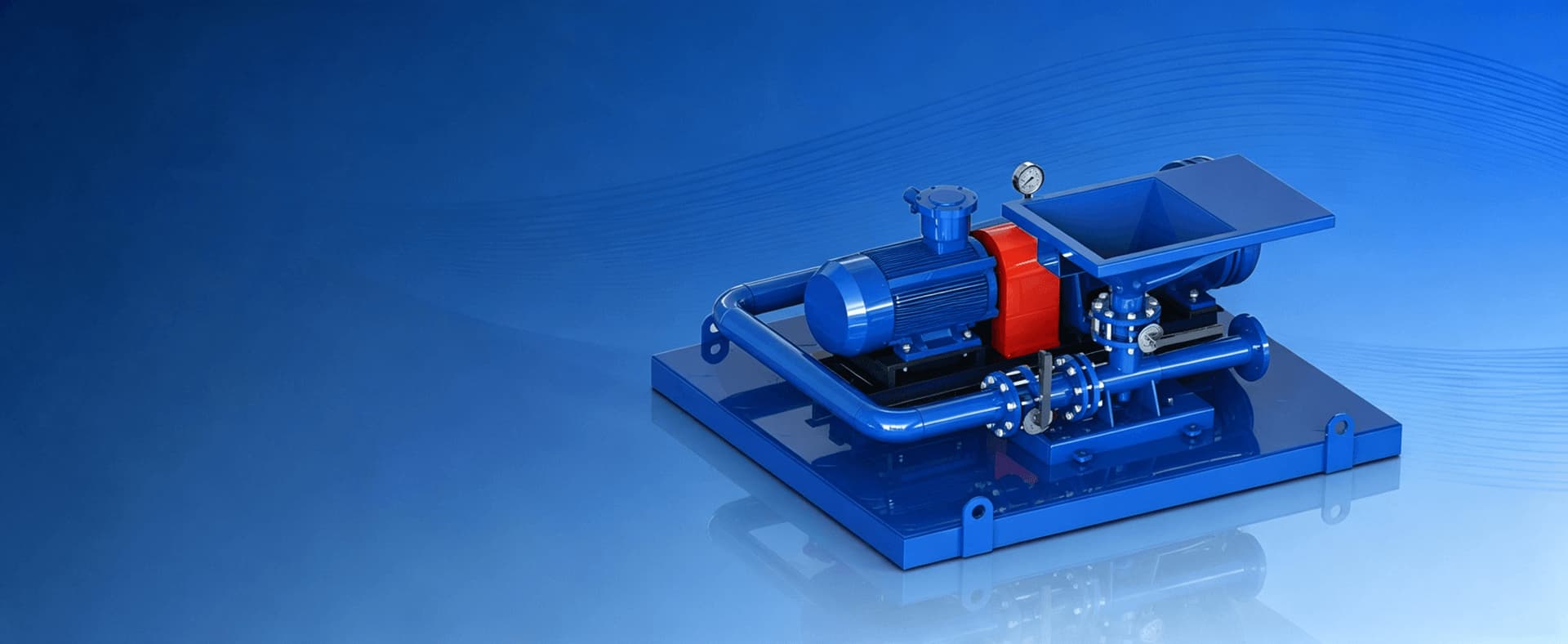

Jet Mud Mixer
Efficient Mud Mixing for Superior Drilling Fluid Performance
- High-Efficiency Mud Mixing Performance
- Wide Additive Compatibility & Better Hydration
- Compact, Mobile & Flexible Configuration
- Reliable Explosion-Proof Operation
Efficient Mud Mixing for Superior Drilling Fluid Performance
Effective drilling fluid preparation is essential for maintaining wellbore stability, improving drilling performance, and ensuring efficient solids control. Poor additive mixing or incomplete bentonite hydration can lead to unstable mud properties, excessive material consumption, and increased operational costs.
Jet Mud Mixer is specially designed to efficiently prepare and weight drilling fluids by rapidly adding and mixing bentonite and other drilling additives. It effectively adjusts drilling fluid density, viscosity, and dehydration performance, helping operators achieve consistent and high-quality mud properties for demanding drilling operations.

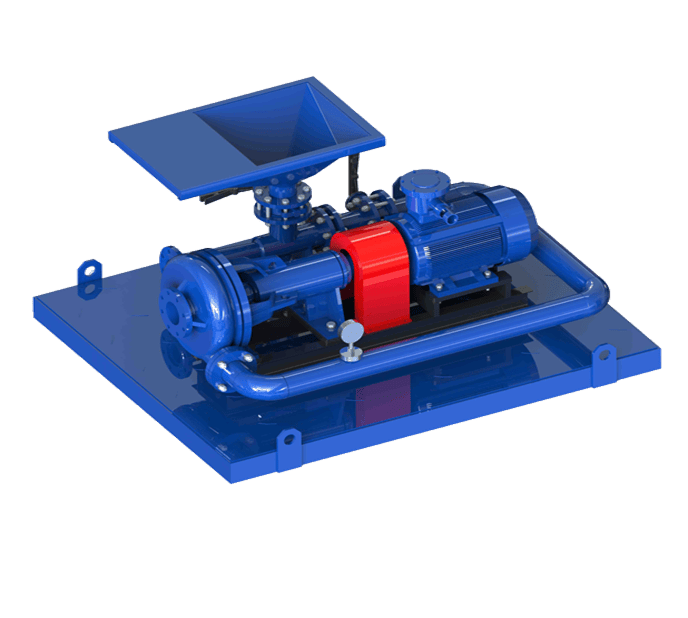

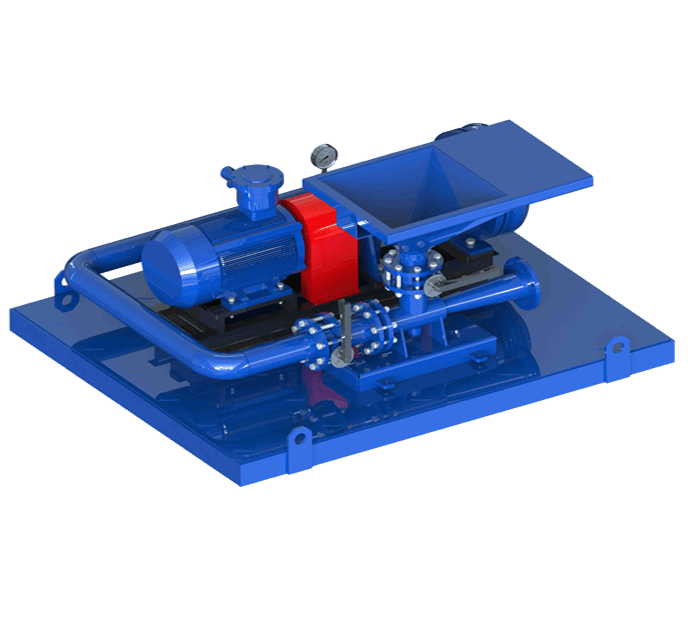

Installed with a sand pump and jet mixing system on an integrated base with piping and valves, the HY Jet Mud Mixer provides a compact, reliable, and highly efficient mud mixing solution. For enhanced performance, it can be paired with a shear pump to further improve additive hydration efficiency.
Jet Mud Mixer is specially designed to efficiently prepare and weight drilling fluids by rapidly adding and mixing bentonite and other drilling additives. It effectively adjusts drilling fluid density, viscosity, and dehydration performance, helping operators achieve consistent and high-quality mud properties for demanding drilling operations.
Installed with a sand pump and jet mixing system on an integrated base with piping and valves, the HY Jet Mud Mixer provides a compact, reliable, and highly efficient mud mixing solution. For enhanced performance, it can be paired with a shear pump to further improve additive hydration efficiency.
Related Documents
Jet Mud Mixer Brochure
High-Efficiency Mud Mixing
Designed for rapid mixing and weighting of drilling fluids, ensuring faster preparation and improved drilling fluid consistency.
Large Hopper Capacity
Features a large hopper inlet diameter, enabling high mixing capacity and smooth material feeding for improved efficiency.
Wide Material Compatibility
Suitable for mixing bentonite, polymers, and other drilling fluid additives, meeting diverse drilling fluid requirements.
Optimized Spray Design
Specially engineered spraying structure ensures sufficient mixing time and excellent blending performance for better additive dispersion.
Compact & Mobile Structure
Integrated compact design requires minimal installation space and allows for easier transportation and site movement.
Flexible System Configuration
Available in single-hopper or twin-hopper configurations, with optional dual-pump systems to meet different operational requirements.
Reliable & Durable Construction
Equipped with explosion-proof motors and electrical components, combined with mechanical seal pumps for enhanced safety, durability, and long service life.
Enhanced Performance with Shear Pump Integration
When combined with a HY Shear Pump, hydration efficiency of bentonite and polymers is significantly improved, delivering superior drilling fluid quality.
Improved Mud Quality
Ensures consistent drilling fluid density, viscosity, and rheological properties.
Reduced Material Consumption
Efficient mixing minimizes additive waste and improves bentonite utilization.
Higher Operational Efficiency
Accelerates mud preparation and reduces waiting time during drilling operations.
Flexible Application Capability
Adaptable to various drilling fluid systems and operational environments.
Long-Term Reliable Performance
Durable construction and high-quality components ensure dependable operation in demanding field conditions.
Jet Mud Mixer Specifications
| Model | HYBZSL150-50 | HYBZSL150-40 | HYBZSL150-30 | HYBZSL100-25 |
|---|---|---|---|---|
| Capacity | 240m³/h | 180m³/h | 120m³/h | 60m³/h |
| Pump Model | HYSB8X6-13 | HYSB6X5-13 | HYSB5X4-13 | HYSB5X3-12 |
| Pump Power | 55kW | 45kW | 37kW | 11kW |
| Working Pressure | 0.25~0.4MPa | |||
| Inlet | DN150 | DN150 | DN150 | DN100 |
| Nozzle | 50mm | 40mm | 30mm | 25mm |
| Outlet | 600×600mm | |||
| Mixing Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Mud Weight | ≤2.8g/cm³ | ≤2.4g/cm³ | ≤2.0g/cm³ | ≤2.0g/cm³ |
| Mud Viscosity | ≤100s | ≤80s | ≤60s | ≤40s |
| EX Standard | ExdIIBt4/IECEX/A-TEX | |||
| Overall Dimensions | 2200×1700×1200mm | 2200×1700×1200mm | 2000×1650×1100mm | 2000×1650×1100mm |
Applications

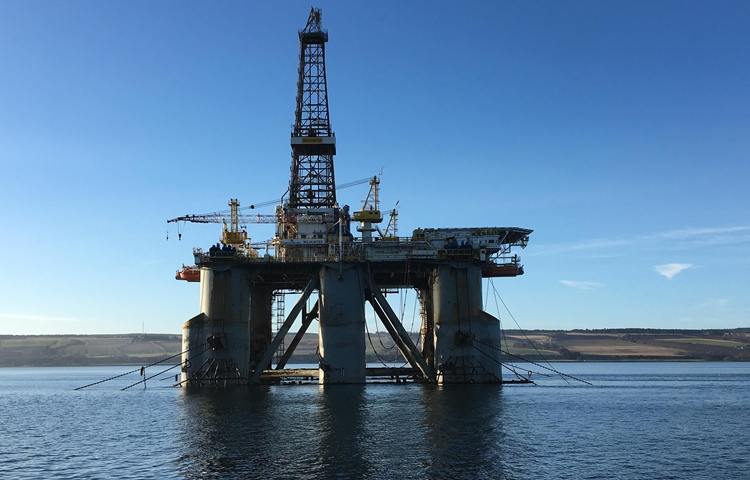

Oil & Gas Drilling
Horizontal Directional Drilling (HDD)
Coal Bed Methane (CBM)
Geothermal Drilling
Water Well Drilling
Result
Faster drilling fluid preparation, improved additive dispersion, better mud consistency, reduced material waste, and enhanced drilling performance for more efficient operations.
JET MUD MIXER FAQs
What is the primary function of a Jet Mud Mixer in drilling operations?
The Jet Mud Mixer is designed for efficient preparation and weighting of drilling fluids by rapidly mixing bentonite, polymers, and other chemical additives. It ensures accurate control of mud density, viscosity, and rheological properties, which are critical for wellbore stability and overall drilling performance.
How does the Jet Mud Mixer improve drilling fluid quality?
The system uses a high-efficiency jetting and venturi-based mixing process to enhance additive dispersion and hydration. This ensures uniform blending of drilling chemicals, reduces lump formation, and improves overall mud consistency, resulting in more stable and reliable drilling fluid performance.
What types of drilling additives can be processed with this system?
The Jet Mud Mixer is compatible with a wide range of drilling fluid additives, including bentonite, barite, polymers, and other weighting and conditioning agents. Its design supports flexible mixing requirements across oil & gas, HDD, CBM, geothermal, and water well drilling applications.
Can the Jet Mud Mixer be integrated with other mud system equipment?

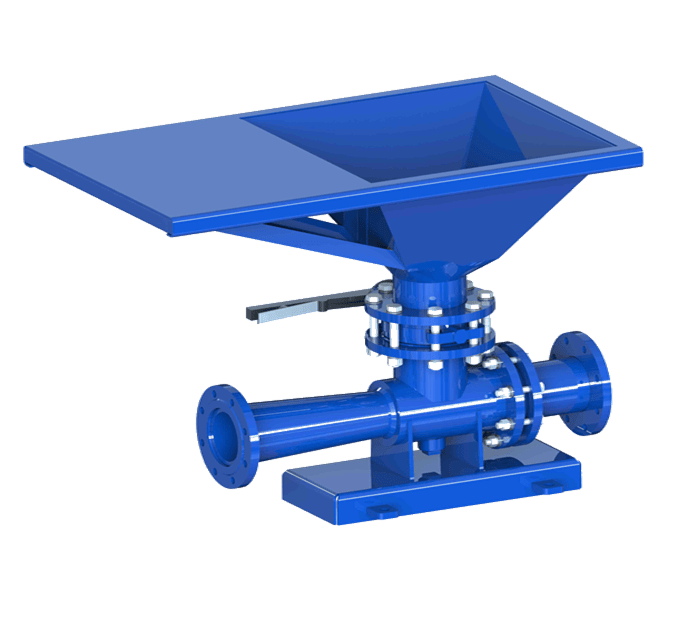

Yes. The system is typically installed with a sand pump and jet mixing hopper on a skid-mounted base with integrated piping and valves. It can also be paired with a shear pump to further enhance hydration efficiency and improve the overall performance of the drilling fluid system.
What are the operational advantages of the Jet Mud Mixer?
The system delivers fast and efficient mud preparation, improves additive utilization, and reduces material waste. Its optimized spray and venturi design ensures better mixing efficiency, helping operators achieve consistent mud properties while reducing waiting time during drilling operations.
How reliable is the Jet Mud Mixer in harsh field environments?
The Jet Mud Mixer is engineered for rugged drilling environments, featuring explosion-proof motors, mechanical seal pumps, and corrosion-resistant construction. Its compact and robust design ensures reliable performance, long service life, and stable operation in both onshore and offshore drilling conditions.
