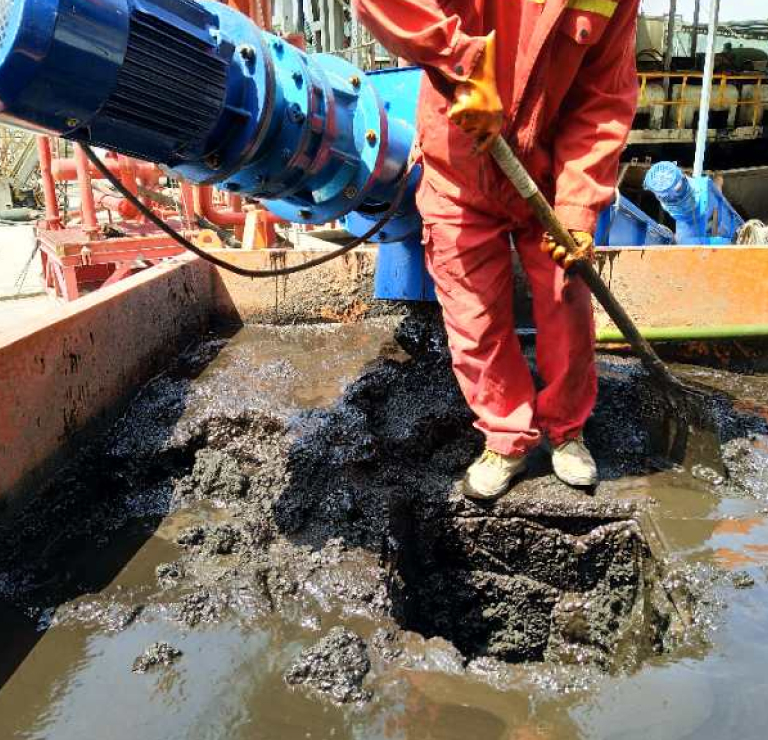

Managing drilling waste in today’s complex operations
Drilling operations generate large volumes of waste — including drill cuttings, spent drilling fluids, and contaminated liquids — that are increasingly difficult to handle under tightening environmental regulations and rising disposal costs. Poorly managed waste streams can quickly escalate into operational, financial, and compliance risks.
In modern oil and gas projects, operators must balance efficient drilling performance with strict environmental responsibility. Ineffective solids control or outdated waste handling practices can lead to excessive waste volumes, loss of valuable drilling fluids, unstable mud properties, and increased non-productive time (NPT).
Across onshore, offshore, and remote field environments, inconsistent waste management creates additional challenges in logistics, transportation, and regulatory reporting. Without an integrated system, waste becomes a continuous burden — impacting cost efficiency, operational safety, and long-term sustainability targets.

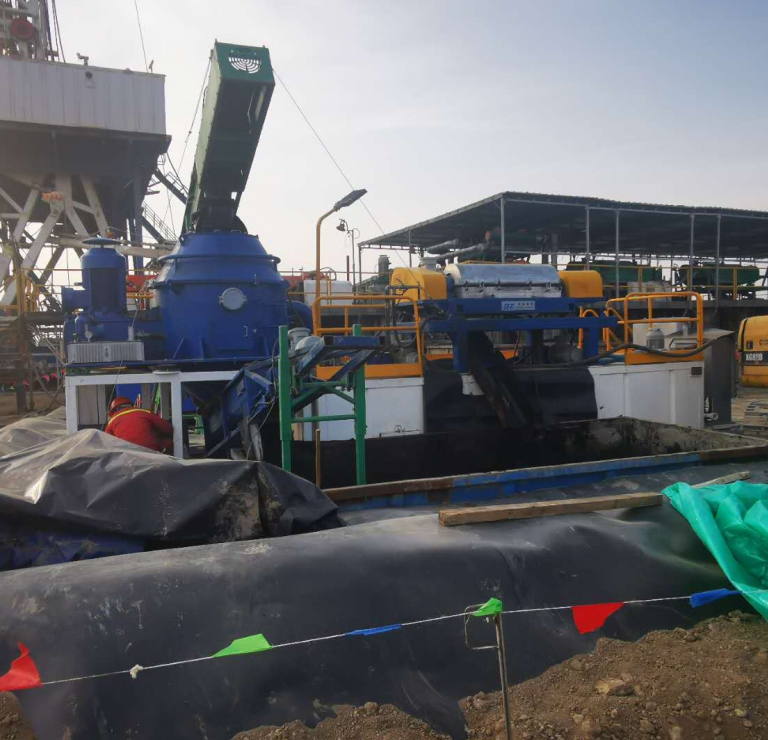

Integrated Drilling Waste Management System for efficient, compliant, and sustainable operations
Our Drilling Waste Management System delivers an integrated, efficient solution that minimizes waste volume, maximizes resource recovery, ensures regulatory compliance, and reduces operational costs. integrates key equipment including high-G drying shakers, vertical cuttings dryers, decanter centrifuges, screw pumps, and screw conveyors to process drilling waste generated from WBM, OBM, and SBM operations.
After treatment, drilling cuttings are collected for appropriate disposal, reuse, or further processing, depending on their properties and applicable environmental regulations. Recovered drilling fluid is returned to the solids control system for reuse, helping reduce fluid losses and minimize waste volumes.
By combining efficient solids-liquid separation with drilling fluid recovery, HENYO PETRO’s Drilling Waste Management System helps operators reduce waste disposal costs, improve resource utilization, and minimize environmental impact—delivering both environmental and economic benefits.
Whether operating in onshore, offshore, or remote locations, the system is engineered to adapt to varying drilling conditions, mud types, and regulatory frameworks — delivering consistent results across projects.
Core Equipment for Drilling Waste Management System
-

High-G Drying Shaker
Maximum Fluid Recovery & Drier Cuttings for Waste ManagementEXPLORE -

Decanter Centrifuge
Advanced Solid Control EquipmentEXPLORE -

Screw Conveyor
Stable & Flexible Material Conveying Solution for Drilling & Industrial OperationsEXPLORE -

Mud Tank System
The Heart of Efficient Drilling Fluid ManagementEXPLORE
-

Vertical Cuttings Dryer
Advanced Drilling Waste Management SolutionEXPLORE -

Decanter Centrifuge
Advanced Solid Control EquipmentEXPLORE -

Screw Pump
Reliable, Efficient & Versatile Screw Pump for Demanding ApplicationsEXPLORE -

Screw Conveyor
Stable & Flexible Material Conveying Solution for Drilling & Industrial OperationsEXPLORE

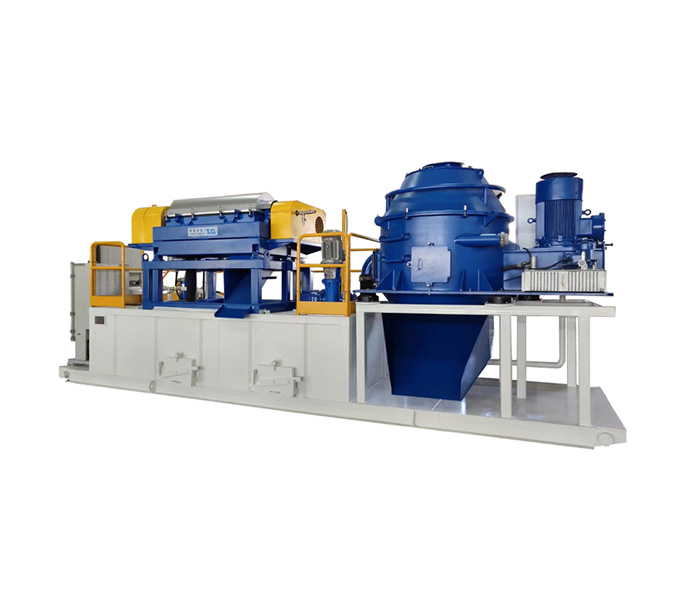

Integrated Drilling Waste Management Solutions
TECHNICAL SPECIFICATIONS
| Model | HYBZCD930 |
|---|---|
| Capacity | 30 ~ 50Ton/h |
| Drying Capacity | OOC ≤ 5% |
| Max Screen Basket Diameter | 930mm |
| Screen Opening | 0.2 ~ 0.5mm |
| Rotation Speed | 900RPM |
| Separation Coefficient | 420G |
| Lubricating Oil Tank Capacity | 48L |
| Air Knife Inlet Pressure | 0.41MPa |
| Air Knife Supply | 4.8m³/min |
| Washer Pump QTY | 1 pc |
| Main Motor Power | 55kW (75HP) |
| Oil Pump Power | 0.55kW (0.75HP) |
| EX Standard | ExdIIBt4/IECEX/A-TEX |
| Explosion-proof Cabinet Type | Standard Explosion-proof Cabinet |
| Weight | 4200kg |
| Overall Dimensions | 2680×1750×1650mm |
| Model | HYBZLW355x1250-BP |
|---|---|
| Tumbler Diameter | 360mm |
| Tumbler Length | 1271mm |
| Max Capacity | 200GPM(45m³/h) |
| Max Rotation Speed | 3900RPM |
| Normal Rotation Speed | 0~3200RPM |
| Separation Coefficient | 3063 |
| Particle Size | 2-5μm |
| Differential Speed (RPM/min) | 0~40 |
| Differential Torque (N·M) | 3500N·M |
| Differential Speed Ratio | 57:1 |
| Main Motor Power | 37kW(50HP) |
| Helper Motor Power | 11kW(15HP) |
| EX Standard | ExdIIBt4/IECEX/A-TEX |
| Explosion-proof Cabinet Type | Variable Frequency |
| Weight | 3300kg |
| Overall Dimensions | 3305×1638×1277mm |
Why Choose Drilling Waste Management System?
- Customizable, modular designs for easy integration with existing rigs.
- Expert support from planning to execution.
- Proven technology trusted by leading energy companies.
- Focus on Zero Discharge and Sustainable Practices for the future of responsible drilling.
