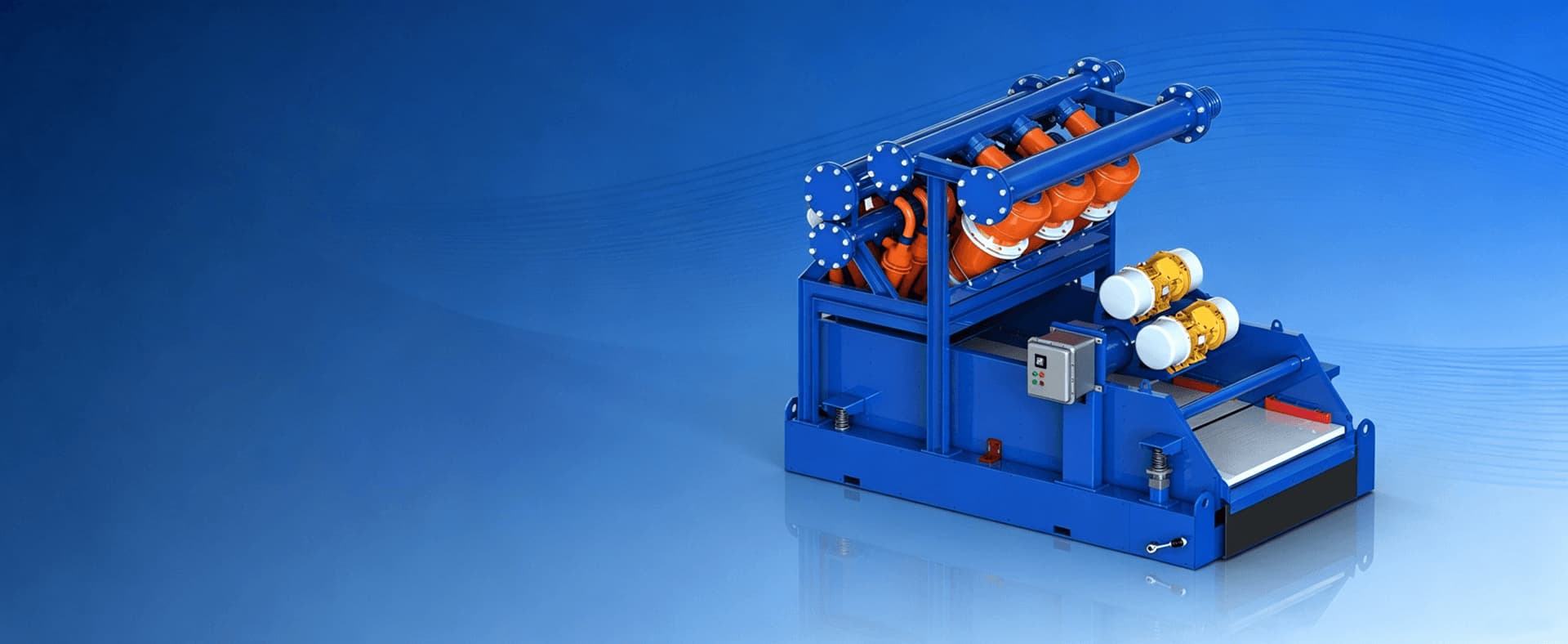

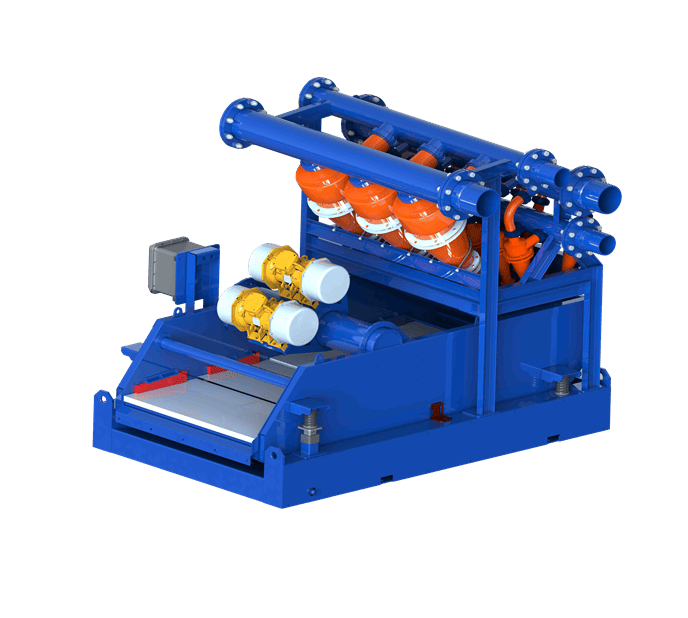

Mud Cleaner
Premium Integrated Solid Control Equipment
- 15–75 μm High-Efficiency Separation
- 3-in-1 Integrated Solids Control Design
- 100% PU Wear-Resistant Hydrocyclone Cones
- Compact, Flexible & Reliable Operation
Premium Integrated Solid Control Equipment

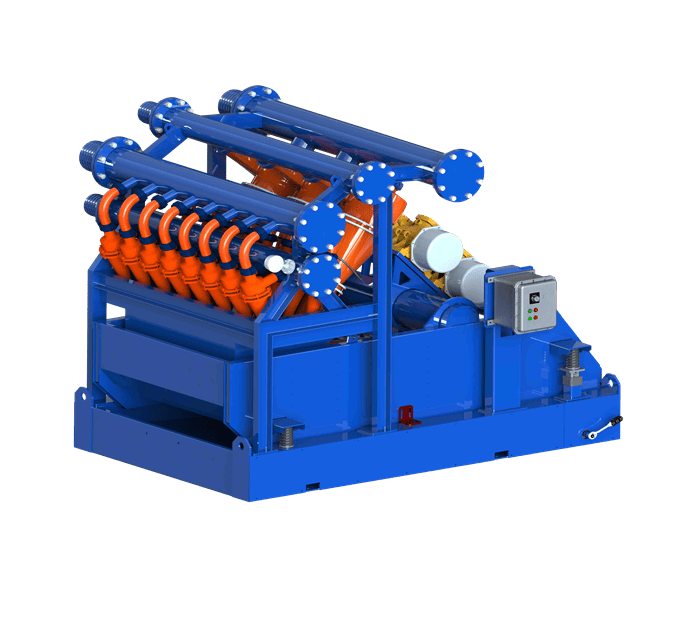

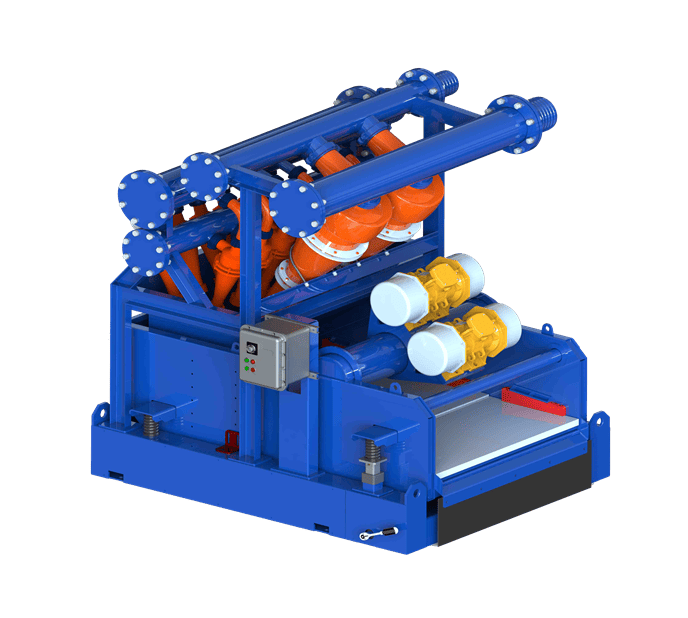

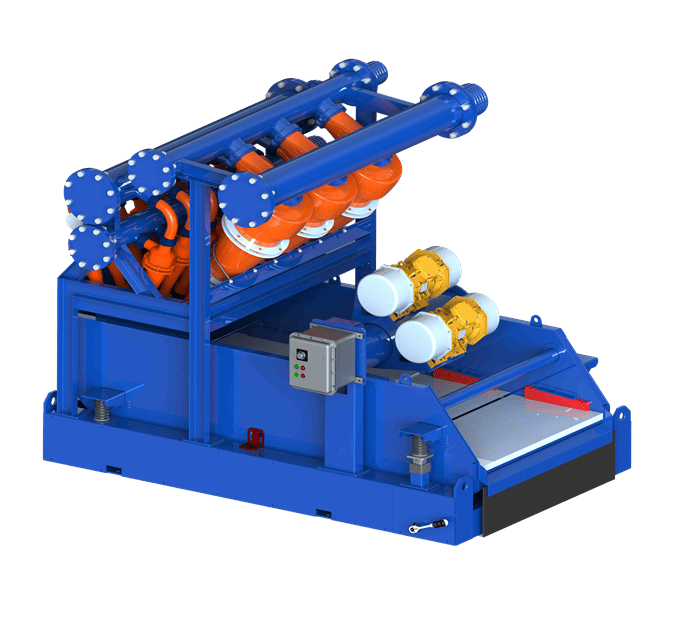

Mud Cleaner is a combo unit that serves as the secondary and tertiary solids control equipment for drilling mud. It integrates a desander hydrocyclone, a desilter hydrocyclone, and an underflow shale shaker into a single, three-in-one assembly. With its compact structure, minimal footprint, and powerful processing capabilities, this integrated unit is the ideal solution for performing both secondary and tertiary solid phase control of drilling mud.
Related Documents
Mud Cleaner Brochure
100% Polyurethane (PU) Hydrocyclone Cones
The Desander and Desilter cones are made entirely of high-strength polyurethane material, offering outstanding wear and corrosion resistance. This effectively extends service life and reduces long-term maintenance costs.
High-Efficiency Multi-Range Separation
Delivers excellent solid-liquid separation performance, capable of removing drilling cuttings in the 15–75 μm range, ensuring cleaner drilling fluid for improved downstream process efficiency.
3-in-1 Compact Design
Integrates desander, desilter, and shale shaker functions into one unit. The compact, all-in-one structure has a small footprint, making it ideal for limited rig space while reducing installation and transportation costs.
Flexible Hydrocyclone Configuration
The number of hydrocyclones can be flexibly adjusted to suit different on-site treatment capacities and well conditions, ensuring strong adaptability across various applications.
Multiple Underflow Shaker Size Options
A full range of underflow shale shaker sizes is available, allowing you to select the most suitable configuration for your specific flow rate and solids control requirements.
Anti-Clogging Spray Nozzle Design
The cone outlet features a specialized spray nozzle design, effectively preventing blockages caused by high-viscosity or high-solids mud, ensuring continuous and trouble-free operation.
Certified Premium Vibration Motors
Equipped with famous brand vibration motors certified to IEC Ex, ATEX, and UL standards, ensuring reliable, safe, and explosion-proof performance in hazardous oilfield environments.
Top-Tier Electrical Components
Key electrical components are sourced from leading brands such as SIEMENS and Schneider, ensuring stable, low-maintenance operation even under harsh working conditions.
Longer Service Life
100% PU hydrocyclone cones deliver exceptional wear and corrosion resistance.
High-Efficiency Separation
Removes 15–75 μm particles to meet comprehensive solids control demands.
3-in-1 Integrated Advantage
Combines desander, desilter and shaker in one unit to save space and cost.
Flexible & Adaptable
Adjustable hydrocyclones and shaker sizes fit various capacity requirements.
Safe & Reliable
Certified motors and top-brand electrical parts guarantee safe running in hazardous areas.
Low Operating Cost
Durable structure, easy maintenance and high integration lower total cost.
Mud Cleaner Specifications
| Model | HYBZQJ583-1S8N | HYBZQJ583-2S12N | HYBZQJ583-3S16N | HYBZQJ584-2S12N | HYBZQJ584-3S16N |
|---|---|---|---|---|---|
| Capacity | 120m³/h | 240m³/h | 360m³/h | 240m³/h | 360m³/h |
| Desander Size | 10inch | ||||
| Desander Qty(pcs) | 1 | 2 | 3 | 2 | 3 |
| Desilter Size | 4inch | ||||
| Desilter Qty(pcs) | 8 | 12 | 16 | 12 | 16 |
| Working Pressure | 0.25～0.4MPa | ||||
| Particle Size | 15～45μm | ||||
| Shaker Model | HYBZS583 | HYBZS584 | |||
| EX Standard | ExdIIBt4/IECEX/A-TEX | ||||
| Weight | 2010kg | 2285kg | 2380kg | 2260kg | 2392kg |
| Overall Dimensions | 2410×1978×2147mm | 2410×1978×2147mm | 2410×1978×2147mm | 3004×1978×2147mm | 3004×1978×2147mm |
Applications
Oil & Gas Drilling (onshore & offshore)
Coal Bed Methane (CBM) Drilling
Horizontal Directional Drilling (HDD)
Geothermal & Water Well Drilling
Result
Full-range precise separation, cleaner drilling fluid, simplified system layout, lower equipment investment, reduced footprint, and optimized overall solids control efficiency.
Mud Cleaner FAQs
What is a mud cleaner used for?
A mud cleaner is an integrated solids control unit used to remove both medium and fine solids from drilling fluid by combining desander, desilter, and shale shaker functions.
What particle size range does the mud cleaner remove?
The system removes solids in the 15–75 μm range, covering both secondary and tertiary separation stages.
How does a mud cleaner operate?
Drilling fluid is processed through hydrocyclones for initial separation, followed by an underflow shale shaker that further dries and removes discharged solids.
Can the hydrocyclone configuration be adjusted?
Yes. The number of hydrocyclones can be configured based on flow rate and project-specific capacity requirements.
What are the advantages of an integrated mud cleaner system?
It reduces equipment footprint, simplifies system layout, lowers installation cost, and improves overall solids control efficiency.
What industries use mud cleaners?
Mud cleaners are widely used in oil & gas drilling, CBM, HDD, geothermal drilling, water wells, and mud recycling systems.
