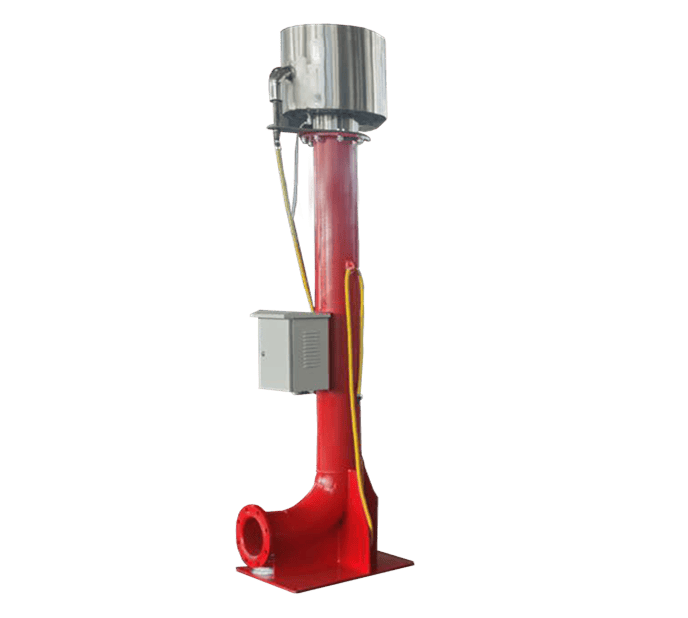

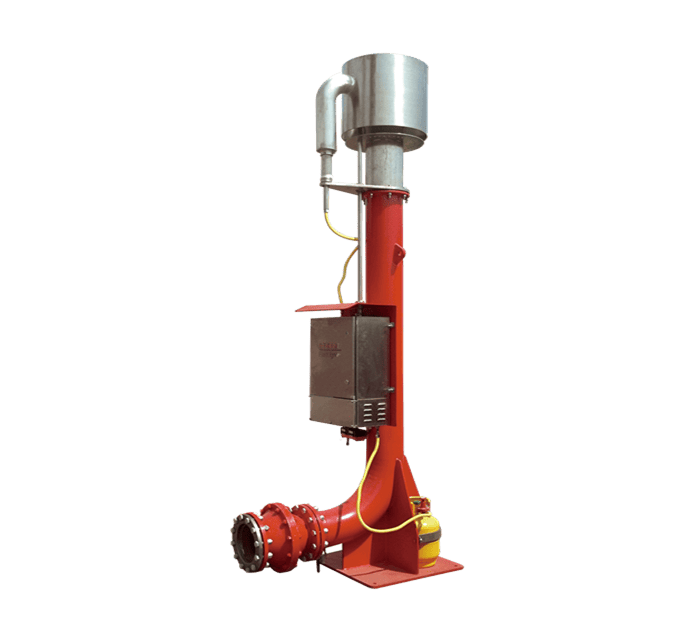

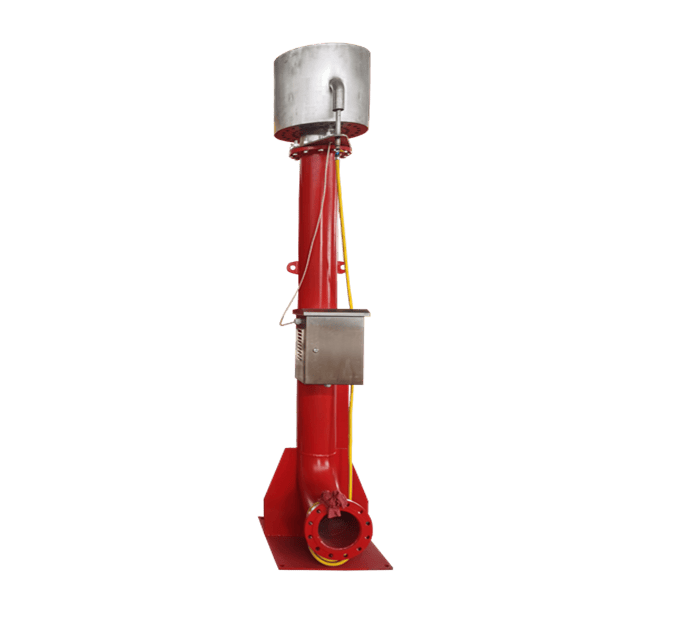

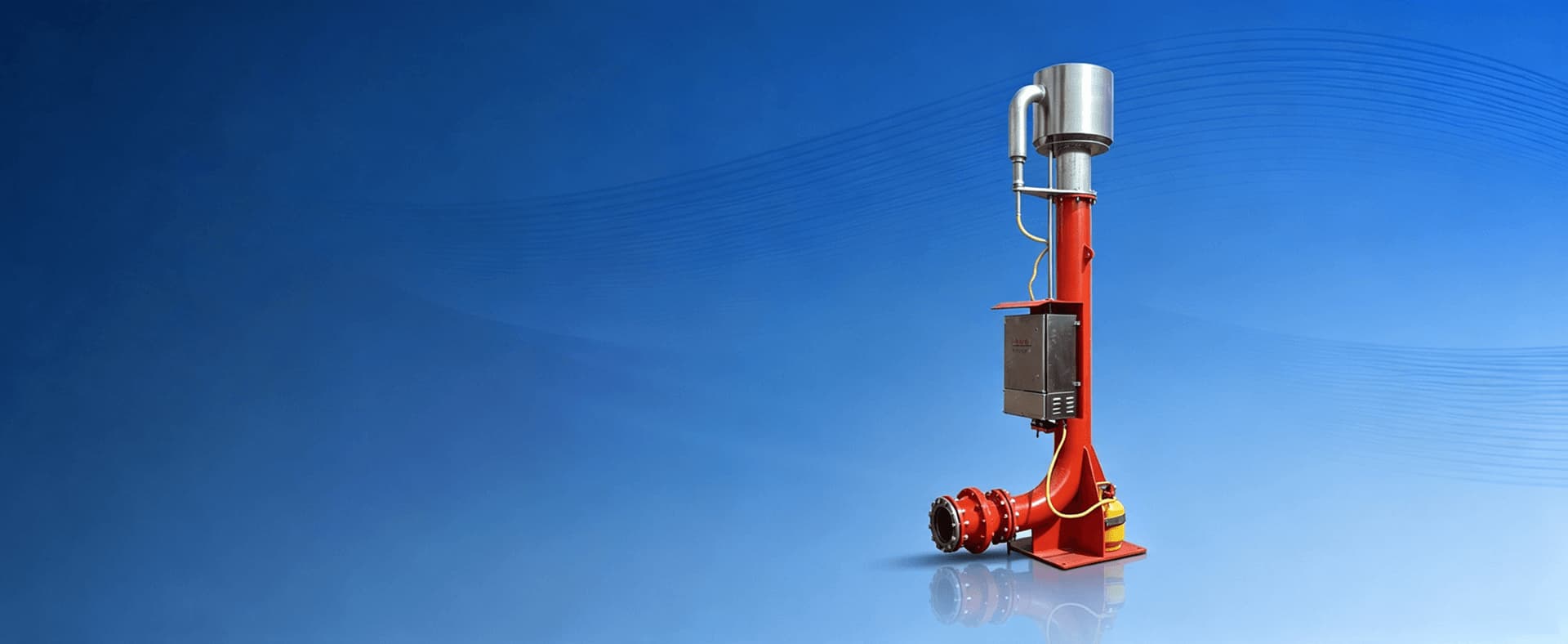

Flare Ignition Device
Safe & Efficient Gas Flaring with Advanced Flare Ignition Device
- Reliable Waste Gas Ignition & Flare Burning
- Manual & Remote Ignition Options
- SS304 Stainless Steel Burner Design
- High-Speed Ignition & Solar Power Option
Safe & Efficient Gas Flaring with Advanced Flare Ignition Device
In drilling operations, safely disposing of separated gas from the Mud Gas Separator is critical for well control and crew safety. Our Flare Ignition Device (Flare Igniter) provides a dependable, high-energy ignition source to instantly and safely burn off flammable gases, preventing dangerous gas buildup around the rig site.
Designed for continuous operation in harsh drilling environments, our Flare Ignition Device ensures reliable ignition even in high winds, rain, and extreme temperatures.
Designed for continuous operation in harsh drilling environments, our Flare Ignition Device ensures reliable ignition even in high winds, rain, and extreme temperatures.
Related Documents
Flare Ignition Device Brochure
High-Energy Ignition System
Electronic spark or pilot flame technology with reliable auto-ignition.
Remote & Automatic Operation
Can be operated from the driller’s cabin or set to automatic mode when gas is detected.
Windproof & Weatherproof Design
Protected against harsh offshore and onshore conditions.
Continuous Pilot Burner Option
Maintains a constant small flame for instant main gas ignition.
Stainless Steel Construction
Corrosion-resistant materials for long service life.
Safety Features
Flame detection sensors, automatic re-ignition, and explosion-proof electrical components (ATEX / IECEx certified options).
Easy Integration
Compatible with Mud Gas Separators, flare booms, and vent lines.
Manual Backup
Handheld or local ignition capability as redundancy.
Maximum Safety
Eliminates the risk of unburned gas accumulation, reducing explosion and fire hazards.
Reliable Performance
Ensures immediate ignition during gas kicks or continuous venting.
Regulatory Compliance
Meets international safety standards and well control requirements.
Reduced Environmental Impact
Efficient combustion minimizes harmful gas release.
Low Maintenance
Robust design with long intervals between servicing.
Operational Confidence
Crews can focus on drilling knowing the flare system is fully operational.
Flare Ignition Device Specifications
| Model | HYBZYD-200 | HYBZYD-200T |
|---|---|---|
| Main Body Diameter | DN200 | DN200 |
| Charging Power | 220V | 220V |
| Ignition Media | LPG/LNG | LPG/LNG |
| Ignition Voltage | 16KV | 16KV |
| Ignition Method | Alternating Current | Alternating Current and Solar Energy |
| Weight | 520kg | 590kg |
| Overall Dimensions | 1250×650×3200mm | 1250×650×3200mm |
Applications
Oil & Gas drilling rigs (onshore & offshore)

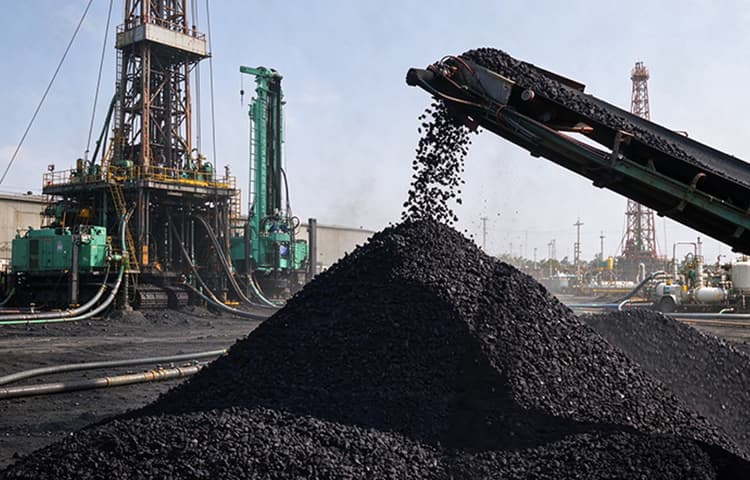

Coalbed Methane (CBM) drilling

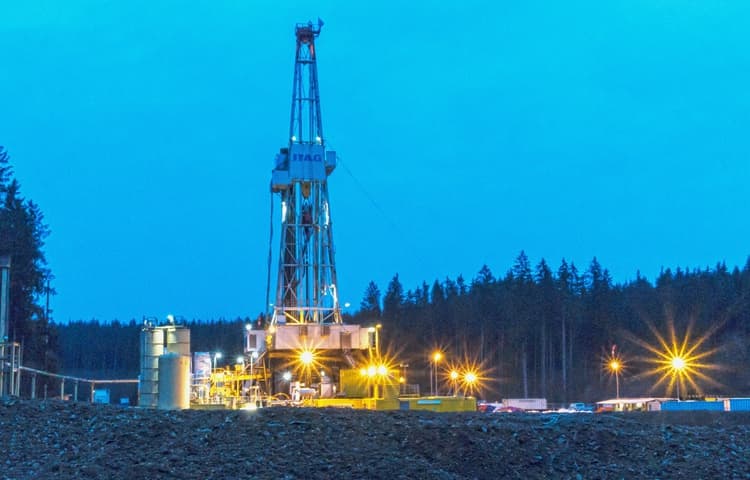

Geothermal well drilling
Result
Drilling teams report consistent, trouble-free flaring operations even during high-gas events, contributing to excellent safety records.
Flare Ignition Device FAQs
What is the primary function of the Flare Ignition Device?
The Flare Ignition Device is designed to safely ignite and burn off flammable gases discharged from Mud Gas Separators or flare systems during drilling operations. It ensures immediate and controlled ignition of vented gases, preventing accumulation of hazardous gas clouds around the rig site and maintaining safe well control conditions.
How reliable is the ignition system under harsh weather conditions?
The system is engineered for continuous operation in extreme drilling environments, including high wind, heavy rain, offshore humidity, and desert temperature variations. High-energy electronic spark or pilot flame systems ensure reliable ignition even under adverse weather conditions, maintaining consistent flare performance at all times.
Can the Flare Ignition Device operate automatically without manual intervention?
Yes. The device supports both remote and fully automatic operation. It can be integrated with gas detection systems or Mud Gas Separator outputs to trigger automatic ignition. Additionally, it can be controlled from the driller’s cabin, providing flexible operation modes depending on rig safety protocols.
What safety features are included to prevent ignition failure or hazards?
The system is equipped with multiple safety layers, including flame detection sensors, automatic re-ignition capability, explosion-proof electrical components, and optional ATEX / IECEx-certified configurations. A continuous pilot burner option ensures immediate ignition readiness, reducing the risk of unburned gas release.
Is the Flare Ignition Device compatible with existing rig flare systems?
Yes. The device is designed for easy integration with standard flare booms, vent lines, and Mud Gas Separator systems. It is available in fixed, portable, and solar-powered configurations, allowing adaptation to a wide range of onshore and offshore rig layouts and operational requirements.
What are the maintenance requirements and operational reliability expectations?
The Flare Ignition Device is built for low-maintenance, long-duration field operation. Its stainless steel construction, weatherproof housing, and robust ignition components ensure extended service life in harsh environments. Routine inspection and periodic system checks are sufficient to maintain high reliability and continuous readiness during drilling operations.
