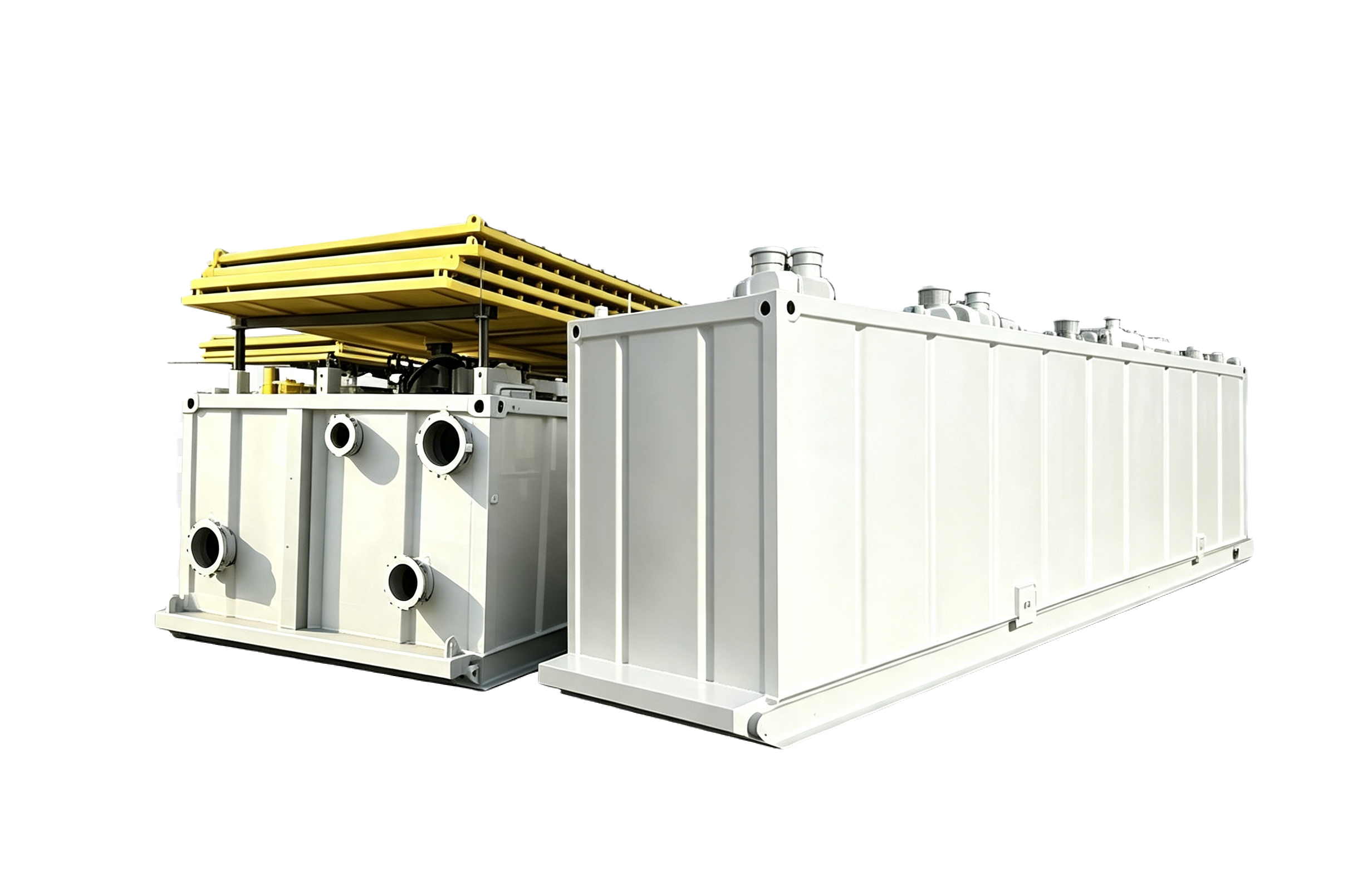

Mud Tank System
The Heart of Efficient Drilling Fluid Management
- Optimized Mud Storage & Fluid Management
- Integrated Solids Control System Compatibility
- Modular Design & Flexible Configurations
- Durable Construction for Harsh Environments
The Heart of Efficient Drilling Fluid Management
In modern drilling operations, the mud tank system serves as the central hub for storing, mixing, conditioning, and circulating drilling fluid. A well-designed system is essential for maintaining optimal mud properties, effective solids control, and uninterrupted drilling performance.
The Intelligent Mud Tank System combines robust engineering with intelligent features to deliver superior fluid handling, reduced downtime, and significant cost savings.
The Intelligent Mud Tank System combines robust engineering with intelligent features to deliver superior fluid handling, reduced downtime, and significant cost savings.
Related Documents
Mud Tank System Brochure
Optimized Tank Design
Cone-bottom or V-bottom tanks with sloped floors for complete drainage and minimal sedimentation.
Powerful Agitation
High-efficiency mud agitators and mud guns ensure uniform mixing and keep weighting materials (barite) and solids suspended.
Intelligent Integration
Seamless connection with shale shakers, desanders, desilters, centrifuges, and degassers for a complete 4- or 5-stage solids control system.
Modular & Skid-Mounted
Flexible configurations (single tanks to full systems with 3–7 tanks) tailored to rig size and drilling depth.
Durable Construction
High-grade steel with excellent corrosion resistance, built for harsh onshore and offshore environments.
Safety & Environmental Focus
Explosion-proof electrical systems, overflow protection, and features that support lower waste volumes and better fluid recovery.
Superior Mud Quality
Consistent viscosity, density, and rheology through continuous agitation and solids removal.
Increased Efficiency
Better solids control leads to faster drilling rates and fewer problems (stuck pipe, lost circulation, etc.).
Cost Reduction
Lower mud consumption, reduced dilution, fewer screen replacements, and extended life of pumps and downstream equipment.
Operational Flexibility
Easy to partition or combine compartments; quick setup on skid or trailer-mounted systems.
Environmental Compliance
Drier cuttings discharge and minimized waste volumes support greener operations.
Reliability
Proven performance in oil & gas, geothermal, HDD, and CBM drilling.
Typical Configurations
| Application Range | Shallow Well System | Standard Well System | Deep Well System |
|---|---|---|---|
| Drilling Depth | 1000–2000m | 3000–4000m | 5000m+ |
| No. of Tanks | 3–4 | 4–5 | 5–7 |
| Typical Total Volume | 90–150 m³ | 160–250 m³ | 300–500+ m³ |
| Purification Levels | 3–4 Level | 4–5 Level | 5 Level |
| Common Applications | Shallow to medium wells | Standard oil & gas | Deep & ultra-deep wells |
| Remark | Custom volumes, compartment layouts (active, reserve, sand trap, slug/pill tanks, etc.), and equipment integration available. | ||
Applications
Onshore and offshore oil & gas drilling rigs
Horizontal Directional Drilling (HDD)
Geothermal and water well projects

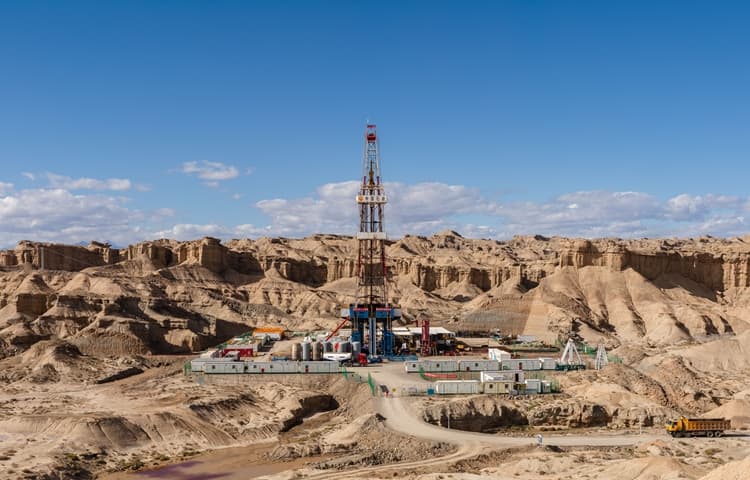

Complete solids control and mud recycling systems
Result
Cleaner, more stable drilling fluid, higher ROP, reduced mud dilution and disposal costs, extended equipment life, and improved overall drilling economics.
MUD TANK SYSTEM FAQs
What is the primary function of a Mud Tank System in drilling operations?
The Mud Tank System is the central processing hub of the drilling fluid circulation system. It is responsible for storing, mixing, conditioning, and distributing drilling mud throughout the operation. The system ensures stable mud properties, efficient solids control performance, and continuous circulation between surface equipment and downhole conditions.
How does the system improve drilling fluid performance and stability?
The system is designed to maintain consistent mud rheology through continuous agitation and optimized tank geometry. High-efficiency mud agitators and mud guns prevent solids settlement and ensure uniform distribution of weighting materials such as barite. This results in improved viscosity control, density stability, and overall drilling fluid performance under dynamic downhole conditions.
Can the Mud Tank System be integrated with solids control equipment?
Yes. The system is fully compatible with multi-stage solids control equipment including shale shakers, desanders, desilters, centrifuges, and degassers. It is designed for seamless integration into 3-stage, 4-stage, or 5-stage solids control configurations, enabling efficient solids removal and closed-loop mud recycling.
What configurations and capacities are available for different drilling depths?
The Mud Tank System is modular and can be configured from single-tank setups to full multi-tank packages. Typical configurations range from 90 m³ for shallow wells (1000–2000 m) to 500+ m³ for deep and ultra-deep wells (5000 m+). Layouts can include active tanks, reserve tanks, sand traps, slug tanks, and pill tanks, depending on operational requirements.
What are the key operational benefits of using this system?
The system improves drilling efficiency by maintaining stable mud quality and reducing solids buildup. This leads to higher rate of penetration (ROP), fewer drilling problems such as stuck pipe and lost circulation, reduced mud dilution costs, and extended service life of downstream equipment. It also enhances operational flexibility through modular tank design and fast rig-up capability.
How reliable is the system in harsh or remote drilling environments?
The Mud Tank System is engineered for demanding onshore and offshore environments, including desert, arctic, offshore, and remote land operations. Constructed from high-grade corrosion-resistant steel with explosion-proof electrical components, it ensures long-term durability, operational safety, and reliable performance even under continuous 24/7 drilling conditions in challenging field locations.
